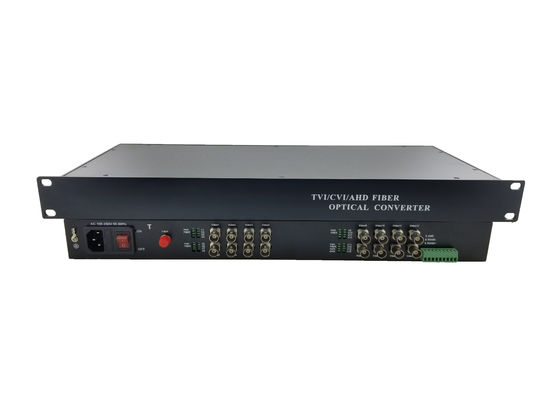

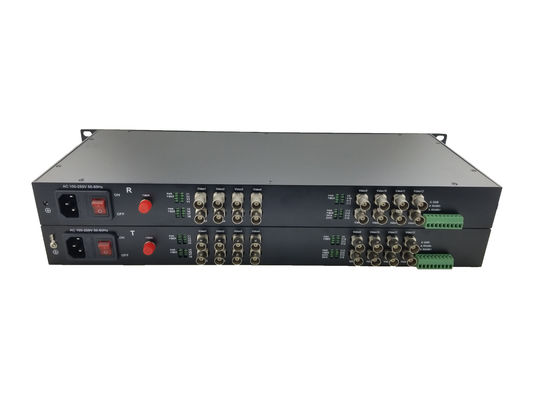

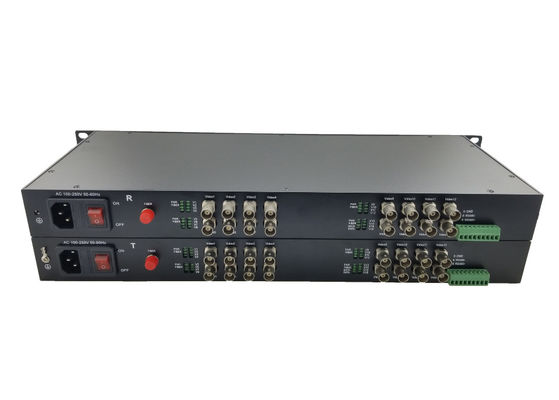

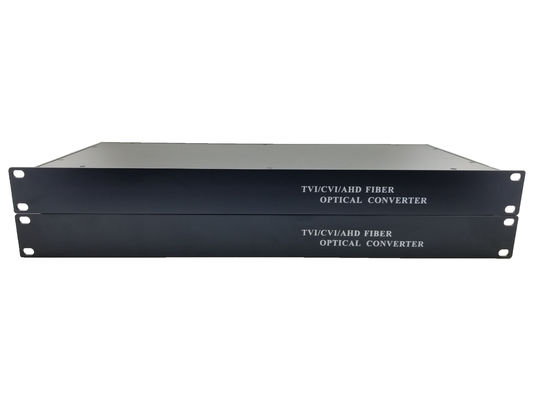

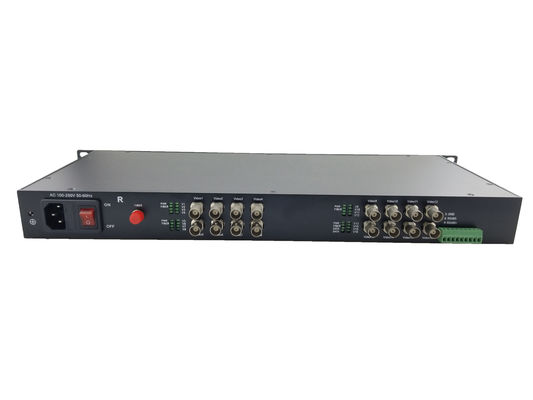

AHD CVI TVI Fiber optical converter, 16-CH 720P 960P video fiber optic transmitter, single-mode single fiber 20

Large Image : AHD CVI TVI Fiber optical converter, 16-CH 720P 960P video fiber optic transmitter, single-mode single fiber 20

Product Details:

Place of Origin:	China
Brand Name:	Ho-Link
Certification:	CE/ROHS/FCC/SGS
Model Number:	H-TVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity:	50pcs
Price:	Negotiable
Packaging Details:	Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time:	1-3 working days after received your payment
Payment Terms:	T/T, Western Union
Supply Ability:	3,000pcs per month

Contact Now

Detailed Product Description

Part Number:	H-TVI-2V1D-T/RF	Fiber Connector:	FC/SC/ST
Distance:	20km	Physical Interface:	BNC
Power Consumption:	≤ 5W	Operation Mode:	Half-Duplex;Full-Duplex;RS-232
Highlight:	fiber optic video transmitter , video to fiber converter

HD video AHD CVI TVI Fiber optical converter, 16-CH 720P 960P video fiber optic transmitter, single-mode single fiber 20KM

Overview:

HD-TVI over Fiber Video Converters-Transimitter & Receiver are the perfect choice for both large and small Pro AV installations. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment.Compatible with 1280H/25f, 1280H/30f, 1280H/50f, 1280H/60f. Lossless non-compression real time transmission over long or short distances with one fiber. In addition, the system support stereo audio, RS485 & RS232 serial data, Loopback output, Contact Closure and IP Ethernet transmission. New signals may be added or fully redundant optical transport solutions may be developed.

AHD CVI TVI Fiber optical converter, 16-CH 720P 960P video fiber optic transmitter, single-mode single fiber 20

Features:

1~16 channel HD-TVI video over one fiber
Support HDTV highest resolution 1080P
10-bit digital video encoding and uncompressed transmission technology
Applied to the needs of computer long-distance transmission of industrial monitoring, large venues etc…
Strictly selection material and quality control in order to ensure high quality and high reliability
System status could be monitored by the power and other parameters LED indicator
Compact size
Excellent cost performance
SMT Surface Mount Technology
Stand-alone or rack-mount
Lower power consumption and free installation, debugging

Technical Specification

Opitcal:

Wavelength	1310nm&1550nm
Output Power	-8~3dBm
Optic fiber	50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity	-25dBm
Optical connector	FC,ST,SC (optional)
Distance	0~550M (MM) / 0~80KM (SM)

Video:

Number of Channels	1~16
Input/output impedance	BNC 75Ω (unbalance)
Standard video input/output voltage	1.0Vp-p
Video Bandwidth	45MHz
Sampling Bandwidth	10bit
Sampling Frequency	108MHz
Rise and Fall time	<0.8ns
Optical Signal Intrinsic Jitter	<0.2 UI
Differential Gain	< ±1.5%
Differential Phase	< ±1°
Connector	BNC

Applications:

Remote OB Van/Truck Video Feeds
Broadcast Studio Camera Feeds
Long-haul Signal Transport
TV station/video conference
Lecture Hall Projector Connectivity
Medical/Surgical Room Broadcast
Building to video conference calling
Small corporate campus video links

HD Video TO Fiber Converter System connection diagram

Product Certifications:

Certificate Standard:CEView scanned certification(s)
Certificate Number:AGC10270906SZ08-1E
Issue Date:13-Jul-2009
Issued By:AGC
Expiry Date:13-Jul-2020

Certificate Standard:FCCView scanned certification(s)
Certificate Number:AGC10270906SZ08-1F
Issue Date:13-Jun-2009
Issued By:AGC
Expiry Date:13-Jun-2020
