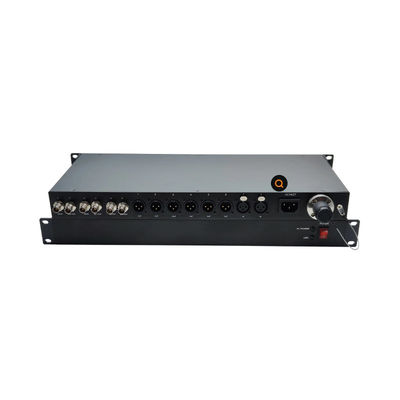

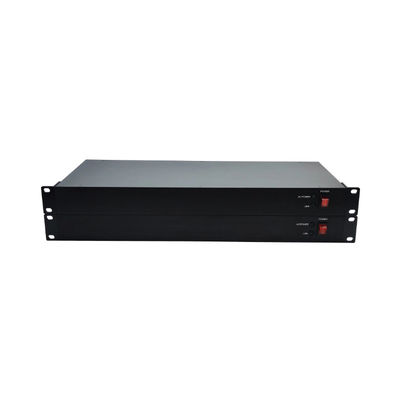

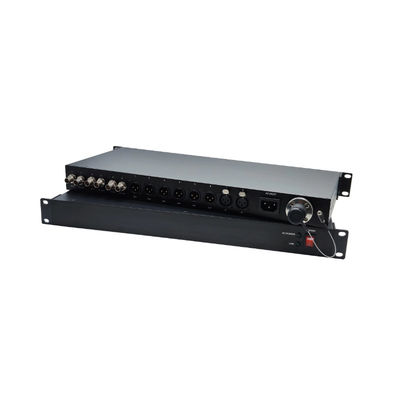

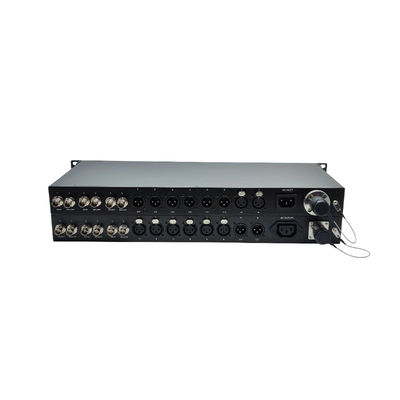

12G-SDI to Fiber Converter with XLR Audio, Lemo Connector 10km, including Transmitter and Receiver

Extends 3 channels of uncompressed 12G-SDI, 3G-SDI, HD-SDI, or SD-SDI video and 8 channels XLR audio over single fiber optic to far end.

Single-Mode Fiber Support for distances up to 10Km(12.4miles), Compatible with multimode Fiber 0-300Meters.

Broadcasting high quality, long working life.

Real-Time Video Transmission for Exceptional Quality and Resolution.

Support video resolution 2160P@60, 1080P@60, 30, 25, 24Hz, 1080I@60, 50Hz.

Supports SMPIE ST-2082, SMPTE 424M, SMPTE 292M, SMPTE 259M or DVB-ASI compliant.

Supports embedded digital audio stream. LED Status Provide Rapid Indication of Operating Parameters.

Easy to install, plug and play.

Functions

1CH Forward 12G-SDI

2CH Backward 12GSDI

6CH Forward XLR Audio

2CH Backward XLR Audio

Lemo Fxw Power Supply

Description

Specifications:
1. Fiber Type: Single mode, Single fiber(default)
2. Working distance: 0~10km
3. Lemo connector: FC/LC/SC/ ST (optional)

SDI Video:
1. Video Interface Number: 3ch with loop
2. Physical Interface: BNC
3. Max Resolution: 2160P @ 60Hz
4. Video Input and Output Impedance:75Ω (unbalanced)
5. Video Input/ Output Voltage: Typical 1Vpp, Min 0.5Vpp, Max 1.5Vpp
6. Video Bits Rate: Max 11.88Gb/s
7. Video SDI standard: 270Mbps(SD-SDI),1.485Gbps/M(HD-SDI), SMPTE425M3Gb/s Mapping(3G-SDI), SMPTE424M 3Gb/s serial interface(3G-SDI), SMPIE ST-2082 12G-SDI

XLR Audio:
1. XLR Interface Number: 8
2. Signal level: 0.5-4Vp-p
3. Dynamic bandwidth: 101 dB
4. Total harmonic distortion (THD): -90 dB
5. Sampling frequency: 192 KHZ
6. Signal to noise ratio(SNR): 100 dB

Electrical & Mechanical:
1. Input Power Requirements: DC 5V
2. Power Adapter: AC 100V~240V
3. Dimensions: 445*228*45mm

Package Include:
1 x 12G-SDI Transmitter
1 x 12G-SDI Receiver
1 x User Manual
2 x External Power supply adapter ( US/EU/UK/AU Optional)

Pictures

Application

1. SMPTE compatible with serial digital interface

2. UHDTV/4K/8K/HDTV/SDTV video

3. IP media gateway

4. Digital video processing and editing

Connection Diagram Reference

Reminder

1. It is recommended to use the short optical fiber link for the first time to ensure that all the functions of the equipment are normal, and then do long-distance transmission

2. The signal of the fiber optic converter can be output to the power amplifier, but the audio source of the power amplifier can not be output the audio source signal to the fiber optic converter, otherwise the equipment will be burned

Troubleshooting of the indicator

1: Power indicator is abnormal (POWER)

Answer: Check whether the power adapter meets the equipment requirements or the power adapter fails

Whether the socket is not tight or loose

2: Fiber indicator is abnormal (FIBER)

Answer: Check whether the optical fiber interface is loose and not plugged in

Check whether the optical fiber is too attenuated

3: Video indicator is abnormal (VIDEO)

Answer: Check the signal source

Replace the video cable

4: Data indicator is abnormal (DATA)

Answer: Check the COM port, whether the baud rate is consistent

Check whether the serial port cable is connected backward

Attention

Lightning protection, static electricity, and grounding:

It is recommended that when installing the device, consideration should be given to the impact of grounding by lightning and prevention measures. Strong static electricity will damage the optical device and data chip in the equipment. It is recommended that when plugging/unplugging the data port of the optical converter, please disconnect the power supply of the optical converter first.

Fiber and optical components:

Be careful when plugging the optical fiber, as the optical components of the optical converter are very fragile, and you should avoid causing damage to the optical components. It should be noted that the light source produced by the optical components of the optical converter will be harmful to the eyes, so do not have direct eye contact with the optical components ofthe  optical converter. If you need to detect the optical power of the optical converter, please use the optical power meter.

Equipment and installation procedures:

1. Optical fiber installation: Please carefully insert the optical fiber into the optical fiber interface of the optical terminal after confirming that the optical fiber link meets the installation requirements.

2. Equipment installation: The equipment can be distinguished between transmitter and receiver, and it is stated clearly on the label and printed on the chassis of the equipment.

Packaging & Shipping
