TV Camera to OB Van over 12G SDI Fiber multiplexer converter in EFP
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | EFP Camera Control System | Fiber Connector: | SMPTE 3K.93C.Y |
|---|---|---|---|
| Fiber Type: | Single Fiber Single Mode | Wavelength: | 1270/1330/1470/1490nm |
| Package: | Netural | Warranty: | 3 Years |
TV Camera to OB Van over 12G SDI Fiber multiplexer converter in EFP
Overview
BEESONG 4K camcorder(ENG) 12G EFP fiber optic converter is developed by our company, with independent intellectual property rights, absorbing the advantages of similar products at home and abroad, combined with the actual demand of the market, we designed this 4K camcorder(ENG) 12G EFP fiber optic converter.
Many TV stations and directors have urgent needs for studio cameras, which are very expensive, and the high cost makes it unaffordable for many people. BS-3K2T (camera fiber optic converter) and BS-3K1U (CCU control unit) helped people to solve the high-cost fee problem.
4K camcorder(ENG) 12G EFP fiber optic converter contain the 1 channel forward 12g sdi video with local loop out, 1 channel reverse PGM, 1 channel Genlock/BB/TC, 1 channel 8 Pin REMOTE, 1 channel 5Pin XLR intercom, 1 channel tally output, 1 channel 1000m ethernet, and adopts SMPTE 3K.93C optical port, dedicated optical-electrical hybrid optical cables support long-distance power supply and signal transmission.
Outdoor ENG camcorders make the replacement of studio cameras a reality. BEESONG 4K camcorder(ENG) 12G EFP fiber optic converter enables one camera to be used for multiple purposes, whether it is for outdoor shooting or live show production in the studio, improving the camera usage efficiency.
Function
1 channel forward 12 G SDI video with local loop out
1 channel reverse PGM
1 channel Genlock
1 channel 1000m Ethernet
1 channel 8Pin REMOTE
1 channel 4Pin XLR intercom
1 channel Tally output
SMPTE 3K93C Fiber Connector
Technical Characteristics
| Output power | Atype:50W Vtype:50W |
| Storage temperature | -40°C ~+85°C |
| Fiber connector | 3K.93C EDW |
| Power adaptor | DC14.8V |
| Dimensions | 105*74*158mm |
| Transmission distance | 300 meters |
| Operating temperature | -20°C ~+75°C |
| Net weight | 1.35KG |

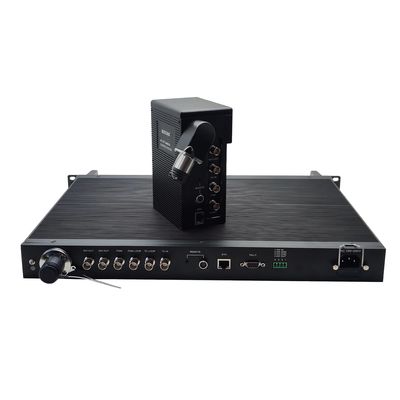

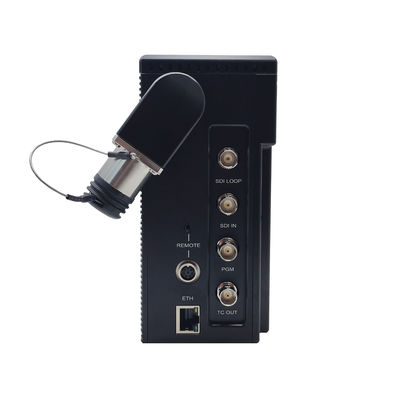

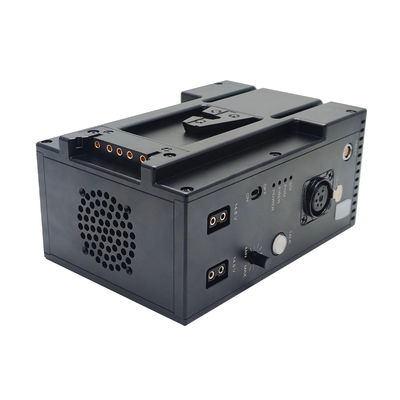

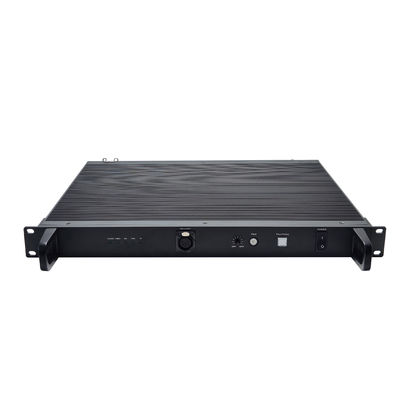

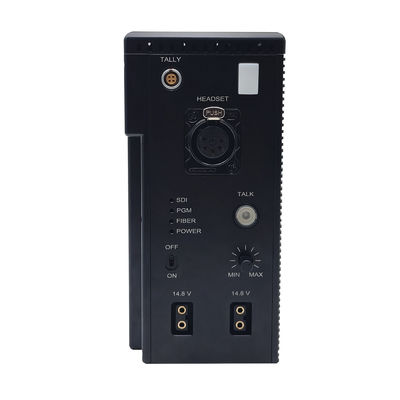

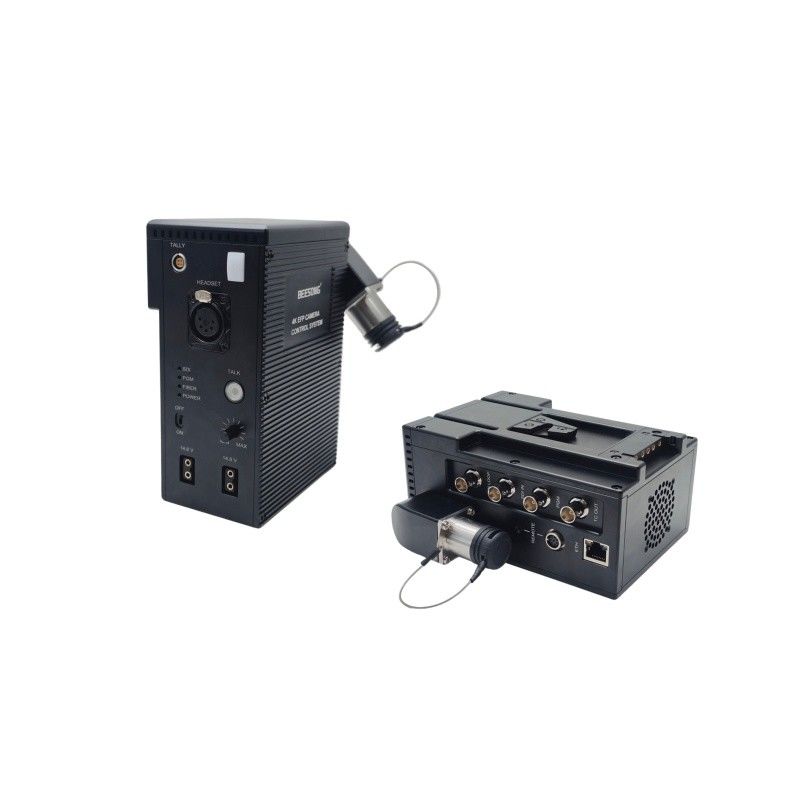

Pictures
Application
1. SMPTE compatible with serial digital interface
2. UHDTV/4K/8K/HDTV/SDTV video
3. IP media gateway
4. Digital video processing and editing
Connection Diagram
Reminder
1. It is recommended to use the short optical fiber link for the first time to ensure that all the functions of the equipment are normal, and then do long-distance transmission
2. The signal of the fiber optic converter can be output to the power amplifier, but the audio source of the power amplifier can not be output the audio source signal to the fiber optic converter, otherwise the equipment will be burned
Troubleshooting of the indicator
1: Power indicator is abnormal (POWER)
Answer: Check whether the power adapter meets the equipment requirements or the power adapter fails
Whether the socket is not tight or loose
2: Fiber indicator is abnormal (FIBER)
Answer: Check whether the optical fiber interface is loose and not plugged in
Check whether the optical fiber is too attenuated
3: Video indicator is abnormal (VIDEO)
Answer: Check the signal source
Replace the video cable
4: Data indicator is abnormal (DATA)
Answer: Check the COM port, whether the baud rate is consistent
Check whether the serial port cable is connected backward
Attention
Lightning protection, static electricity, and grounding:
It is recommended that when installing the device, consideration should be given to the impact of grounding by lightning and prevention measures. Strong static electricity will damage the optical device and data chip in the equipment. It is recommended that when plugging/unplugging the data port of the optical converter, please disconnect the power supply of the optical converter first.
Fiber and optical components:
Be careful when plugging the optical fiber, as the optical components of the optical converter are very fragile, and you should avoid causing damage to the optical components. It should be noted that the light source produced by the optical components of the optical converter will be harmful to the eyes, so do not have direct eye contact with the optical components ofthe optical converter. If you need to detect the optical power of the optical converter, please use the optical power meter.
Equipment and installation procedures:
1. Optical fiber installation: Please carefully insert the optical fiber into the optical fiber interface of the optical terminal after confirming that the optical fiber link meets the installation requirements.
2. Equipment installation: The equipment can be distinguished between transmitter and receiver, and it is stated clearly on the label and printed on the chassis of the equipment.
