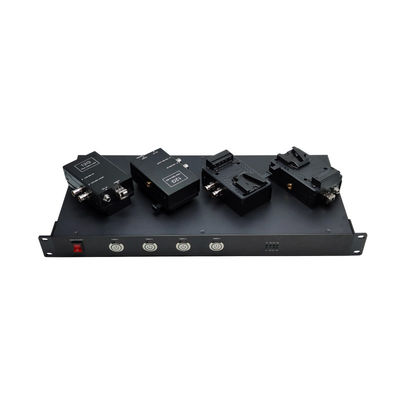

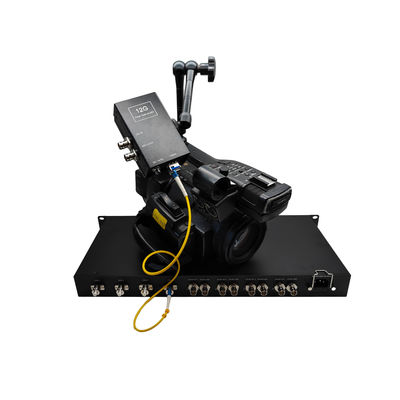

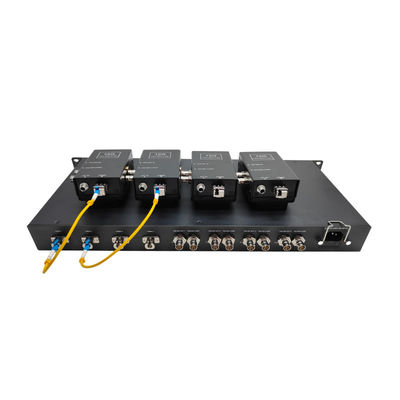

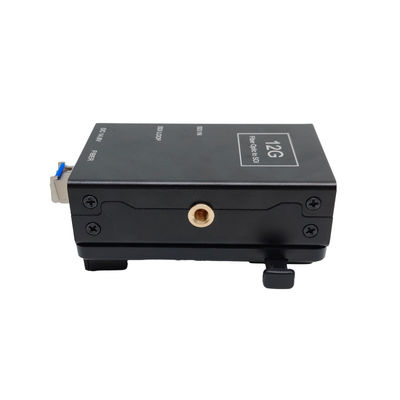

4 in 1 EFP 12G-SDI Video to Camera Fiber Optic Transmission System With 4pcs Transmitter and 1pc Rack CCU

1. 1 channel 12G-SDI Video with Loopout over optic fiber

2. Each SDI channel includes 1-channel audio embedded

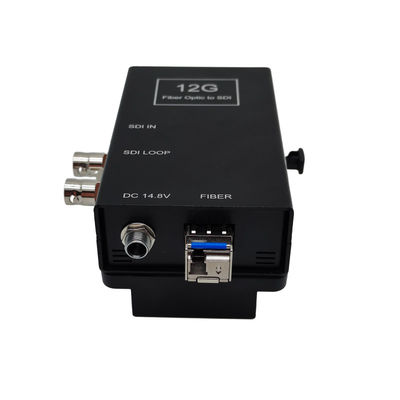

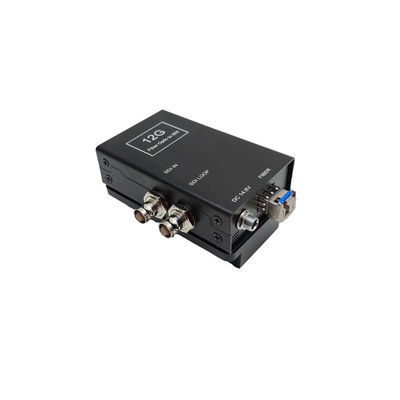

3. SDI input/LC fiber output/SDI Loop

4. Automatic cable equalization to ensure signal integrity

5. Supports 12G / 6G / 3G / HD / SD

6. Compatible with DVB-ASI and AES10 (MADI)

7. Integrated reclock locks to SMPTE rates of 11.88Gbps,5.94Gbps,2.97Gbps,1.485Gbps or divide-by-1.001 sub-rates and 270Mbps

8. Directly compatible with 12G/6G/3G-SDI camera systems

9. Long transmission capability at least 10 km, up to 40 km

10. DC14.6V power input

11. Supports hot swapping and hot plugging

12. Full digital non-compression broadcast level transmission

13. Super optic dynamic range and free of adjustment prior to use

14. Fiber optic WDM/CWDM/DWDM technique

15.Support HDTV 4K*2K(3840*2160@60Hz),1080P,1080I,720P

Specification

Pictures

Application

Broadcasting Video Transmission

High Quality HD-SDI Video Monitoring in Traffic Operation (ITS)

High Quality Images METRO Security

Avionic Surveillance System

Oil & Gas Perimeter Intruder

Detection Military Applications Premise Networks

Connection Diagram

Reminder

1. It is recommended to use the short optical fiber link for the first time to ensure that all the functions of the equipment are normal, and then do long-distance transmission

2. The signal of the fiber optic converter can be output to the power amplifier, but the audio source of the power amplifier can not be output the audio source signal to the fiber optic converter, otherwise the equipment will be burned

Troubleshooting of the indicator

1: Power indicator is abnormal (POWER)

Answer: Check whether the power adapter meets the equipment requirements or the power adapter fails

Whether the socket is not tight or loose

2: Fiber indicator is abnormal (FIBER)

Answer: Check whether the optical fiber interface is loose and not plugged in

Check whether the optical fiber is too attenuated

3: Video indicator is abnormal (VIDEO)

Answer: Check the signal source

Replace the video cable

4: Data indicator is abnormal (DATA)

Answer: Check the COM port, whether the baud rate is consistent

Check whether the serial port cable is connected backward

Attention

Lightning protection, static electricity, and grounding:

It is recommended that when installing the device, consideration should be given to the impact of grounding by lightning and prevention measures. Strong static electricity will damage the optical device and data chip in the equipment. It is recommended that when plugging/unplugging the data port of the optical converter, please disconnect the power supply of the optical converter first.

Fiber and optical components:

Be careful when plugging the optical fiber, as the optical components of the optical converter are very fragile, and you should avoid causing damage to the optical components. It should be noted that the light source produced by the optical components of the optical converter will be harmful to the eyes, so do not have direct eye contact with the optical components ofthe  optical converter. If you need to detect the optical power of the optical converter, please use the optical power meter.

Equipment and installation procedures:

1. Optical fiber installation: Please carefully insert the optical fiber into the optical fiber interface of the optical terminal after confirming that the optical fiber link meets the installation requirements.

2. Equipment installation: The equipment can be distinguished between transmitter and receiver, and it is stated clearly on the label and printed on the chassis of the equipment.
