4K60Hz HD-MI Video to Fiber Converter With KVM, 3.5mm Audio, RS485/RS232 Data
Product Details:
Payment & Shipping Terms:
|
Detailed Product Description
| Product Name: | 4K60Hz HD MI Video Fiber Optic Converter | Fiber Connector: | LC |
|---|---|---|---|
| Fiber Type: | Single Fiber Single Mode | Wavelength: | 1310nm-1550nm |
| Power Supply: | DC12V | Standard: | HD MI 2.0 |
| Package: | Netural | Warranty: | 3 Years |
4K 60Hz HD-MI Video to Fiber Converter With KVM, 3.5mm Audio, RS485/RS232 Data
Overview
HDMI 2.0 Multi-function fiber optic converter is developed by our company,with independent intellectual property rights. Absorbed the advantages of similar products at home and abroad, combined with the actual demand of the market, we designed the HDMI 2.0 multi-function fiber optic converter. The device can transmit 1 channel 4K60Hz HDMI video with local loop out, 1 channel bidirectional 3.5mm audio, 1 channel bidirectional RS232/RS485 data, 1 channel keyboard and mouse through one core optical fiber, realizing no delay, no compression, high-quality signal extension of 10km.
HDMI 2.0 Multi-function fiber optic converter its optical module and core circuit are imported components, performance
stability, the equipment adopts integrated circuit design, concise design, has easy installation and debugging, maintenance free, industrial-grade wide temperature range design, at the same time because of the use of optical fiber as the transmission medium, so the performance is excellent, high temperature, cold resistance, can effectively prevent strong electromagnetic wave radiation interference, lightning shock and power surge, communication quality is stable and reliable.
Features
1. Video complies with the HDMI 2.0 specification
2. Both transmitter and receiver have video loop-back sharing HD audio and video function
3. Support EDID management function,support built-in EDID/automatic learning EDID switch
4. Support 3D and HDR format video
5. Support forward 3.5mm independent transmission,and have audio embedding/de-embedding function
6. Support reverse 3.5mm audio transmission
7. Support 1 channel keyboard and mouse control signal
8. Support 1 channel bidirectional RS232/RS485 serial port data transmission
9. Single-mode 10km transmission distance
10. Support hot swap signal, plug and play, no setting required

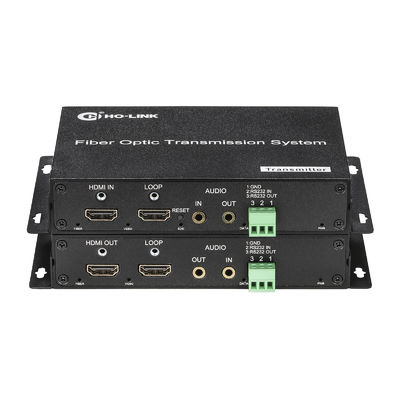

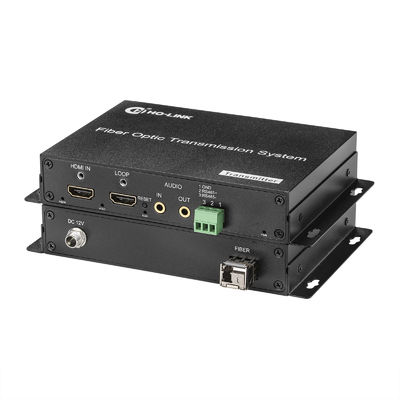

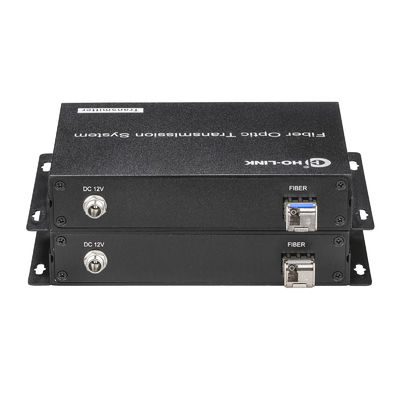

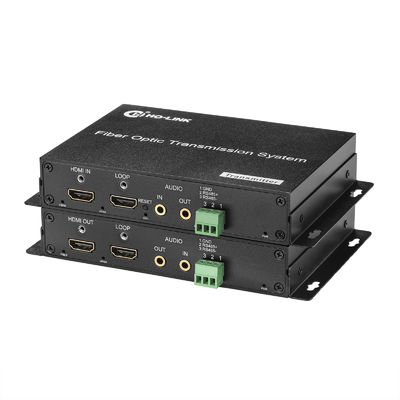

Pictures
Specification
| Fiber parameter | |
| Wavelength | 1310/1550nm |
| Rate | 10Gbps |
| Transmitter power | ＞-3db |
| Receiver sensitivity | ＞-10db |
| Optical module parameter | Single fiber single mode 10km |
| Fiber connector | L C |
| Video parameter | |
| HDMI standard | HDMI 2.0 |
| Video bandwidth | 18Gbps |
| Video resolution | 480i ~1080p50/60Hz,4Kx2K@24/30Hz,4kx2k@60Hz |
| Color space |
4K60Hz YUV 4:2:0 4K30Hz RGB, YCbCr 4:4:4 / 4:2:2 / 4:2:0 |
| Maximum pixel clock | 594MHZ |
| Effective cable length | ≤10M |
| Physical interface | HDMI female |
| Audio parameter | |
| Sampling frequency | 48K |
| Sampling depth | 24bit |
| Dynamic bandwidth | 96db |
| Total harmonic distortion (THD) | -88db |
| Signal to noise ratio(SNR) | 96db |
| Audio input/output impedance | 600Ω |
| Signal level | VPP 3.5V |
| Physical interface | 3.5mm stereo audio socket |
| Signal type | Stereo audio |
| KVM(USB) parameter | |
| Version | 1.1 |
| Transmitter physical interface | USB female type B |
| Receiver physical interface | USB female type A |
| RS232 data parameter (3-wire system, full duplex) standard configuration | |
| Baud rate | 115200Kbps downward compatibility |
| Data bits | 8 digits |
| Physical interface | 3-pin phoenix terminal |
| Mechanical parameter | |
| Material | Aluminum alloy |
| Product size | 163*100*29mm |
| Net weight of product | 0.65kg/Pcs |
| Way to install | Desktop type |
| Package | |
| Package material | Kraft paper |
| Weight | 1.1kg |
| Package size | 340*252*54mm |
| Environment | |
| Working temperature | -20°C ~75°C |
| Storage temperature | -40°C ~85°C |
| Relative humidity | From 5 to 95% (non-condensing) |
| MTBF | > 100,000 hours |
Application
1. SMPTE compatible with serial digital interface
2. UHDTV/4K/8K/HDTV/SDTV video
3. IP media gateway
4. Digital video processing and editing
Connection Diagram
Reminder
1. It is recommended to use the short optical fiber link for the first time to ensure that all the functions of the equipment are normal, and then do long-distance transmission
2. The signal of the fiber optic converter can be output to the power amplifier, but the audio source of the power amplifier can not be output the audio source signal to the fiber optic converter, otherwise the equipment will be burned
Troubleshooting of the indicator
1: Power indicator is abnormal (POWER)
Answer: Check whether the power adapter meets the equipment requirements or the power adapter fails
Whether the socket is not tight or loose
2: Fiber indicator is abnormal (FIBER)
Answer: Check whether the optical fiber interface is loose and not plugged in
Check whether the optical fiber is too attenuated
3: Video indicator is abnormal (VIDEO)
Answer: Check the signal source
Replace the video cable
4: Data indicator is abnormal (DATA)
Answer: Check the COM port, whether the baud rate is consistent
Check whether the serial port cable is connected backward
Attention
Lightning protection, static electricity, and grounding:
It is recommended that when installing the device, consideration should be given to the impact of grounding by lightning and prevention measures. Strong static electricity will damage the optical device and data chip in the equipment. It is recommended that when plugging/unplugging the data port of the optical converter, please disconnect the power supply of the optical converter first.
Fiber and optical components:
Be careful when plugging the optical fiber, as the optical components of the optical converter are very fragile, and you should avoid causing damage to the optical components. It should be noted that the light source produced by the optical components of the optical converter will be harmful to the eyes, so do not have direct eye contact with the optical components ofthe optical converter. If you need to detect the optical power of the optical converter, please use the optical power meter.
Equipment and installation procedures:
1. Optical fiber installation: Please carefully insert the optical fiber into the optical fiber interface of the optical terminal after confirming that the optical fiber link meets the installation requirements.
2. Equipment installation: The equipment can be distinguished between transmitter and receiver, and it is stated clearly on the label and printed on the chassis of the equipment.
