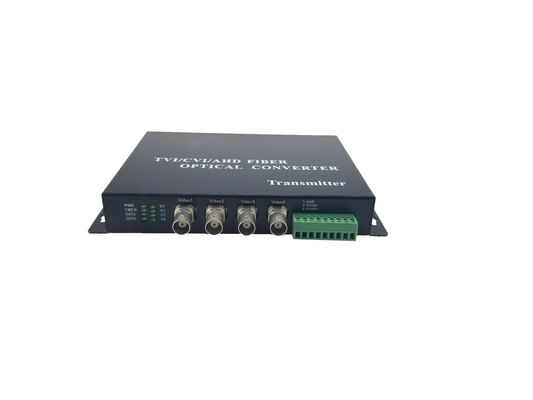

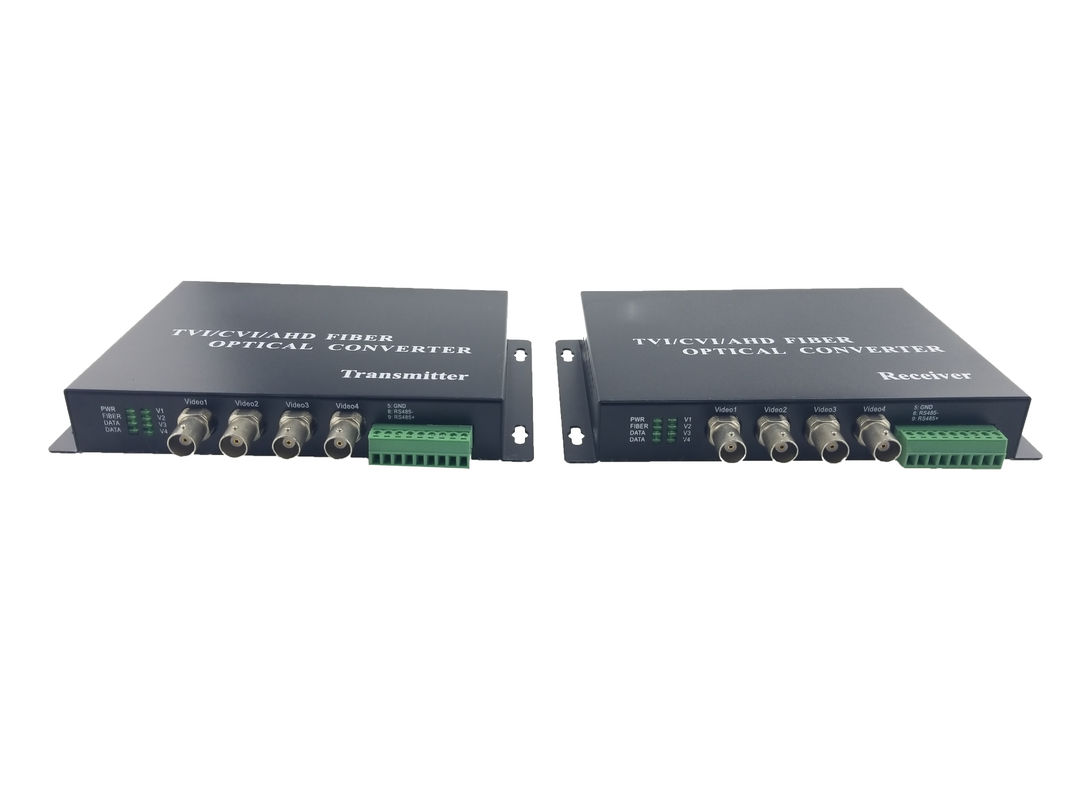

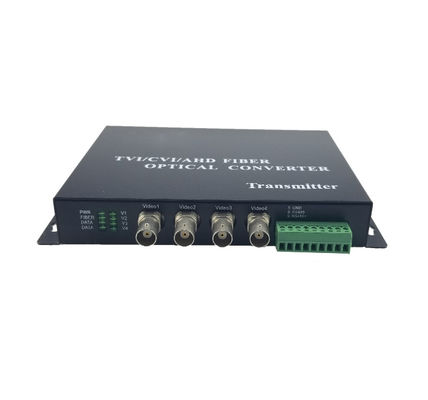

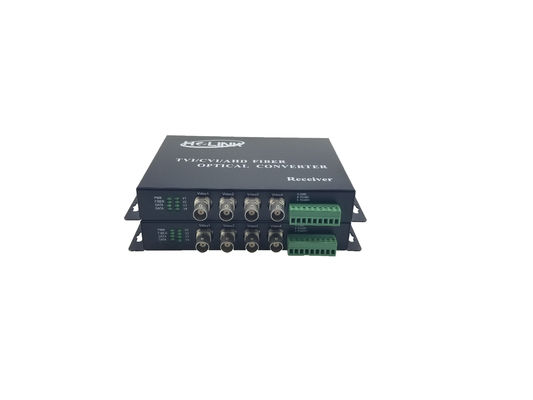

4CH 720P 960P HD 1080p Video Converter / Fiber Optic Transmitter

Large Image : 4CH 720P 960P HD 1080p Video Converter / Fiber Optic Transmitter

Product Details:

Place of Origin:	CHINA( MAINLAND)
Brand Name:	HO-link
Certification:	CE FCC RoHS
Model Number:	H-CVI/TVI/AHD-1V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity:	1 PAIR
Price:	negotiation
Packaging Details:	international standard package
Delivery Time:	3-5 working days after payment
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	6000pairs one month

Contact Now

Detailed Product Description

Power Supply:	DC 5V	Resolution:	720/1080P
Distance:	0-20KM	Brand:	Ho-link
Storage Temperature:	-45°~ 95°C	Operating Temperaturer:	-40°~ 85°C

HD video AHD CVI TVI Fiber optical converter, 4-CH 720P 960P video fiber optic transmitter,single-mode single fiber 20KM

Product Description:

HD-CVI/AHD/TVI Fiber to Converter is designed for long-distance optical fiber transmission HD-CVI/AHD/TVI composite video and design, the use of non-compressed digital video technology, the use of point to point optical fiber coaxial transmission megapixels level HD video, the delay-free, high reliability video transmission. Single fiber can simultaneously transmit 1/2/4/8/16 road HD-CVI/AHD/TVI composite video.

Features:

1. Lossless, HD, real-time transmission

2. Automatic identify the input video formats

3. Support ultra-distance coaxial transmission

4. Support single fiber simultaneously transmit multiple video and composite signals

5. Supports a variety of standard switch 720p | 25/30/50/60 frame, 1080p | 25/30 frames

6. Wide temperature dust-free prospective industrial design, the device supports outdoor high and low temperature harsh environments

7. Plug and play, easy installation and operation

Specification:

Technical Specification
Product Name	1Channel TVI//CVI/AHD video converter 720P
Model	H-CVI/TVI/AHD-1V1D-T/RF
Description	HD TVI/CVI/AHD coaxial to fiber transmission
Ports	One FC fiber port+ 1BNC port
Transmission Distance	20KM(Single mode)
Fiber Interface	FC, 1310nm/1550nm
Video Interface	BNC
Physical Interface	FC fiber interface, Single Mode/Multimode
Transmission distance	0~500M(multimode) / 0~20/40KM(single mode)
Input / output wavelength	The transmitter side: 1310nm transmit 1550nm receive; The receiving side: 1550nm transmit 1310nm receive
Laser power	-8~ -3dBm / -3~+2dBm
Receiver sensitivity	-25dBm
Fiber Type	Multimode:50/125um,62.5/125um Single mode: 9/125um
Video	720p\|25/30 fps, 1080p\|25/30 fps
Input Level	>500mVp-p
Output Level	1Vp-p
Automatic cable	1080p: 75-5 Coax Support 300m 720p: 75-5 Coax Support 500m
Input and output impedance	75Ω
Physical Interface	BNC
Video Input	1 channel
Video Output	1 channel
Video Bandwidth	45MHz
Sampling bandwidth	10bit
Baud Rate	1200-9600bps
BER	<10-9
Operating mode	Half-duplex
Working Environment	Operating Temperature: -40°~ 85°C Storage Temperature: -45°~ 95°C Operating Humidity: 5%~95%, non-condensing
Warranty	3 year warranty

Shippng and Packing:

shipped: by TNT UPS Fedex DHL etc.

packing: international standard package

Packing List:

Transmitter and Receiver 1 pair

Power Adapter (EU,US,UK available)

English User Manual
