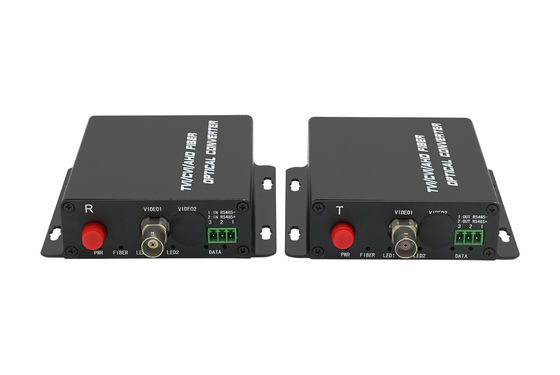

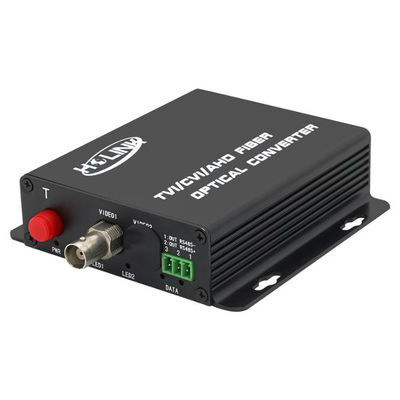

HD 1080p 1 Channel Video Converter HDCVI/TVI/AHD Fiber optic Video Transceiver Wall mounted

Large Image : HD 1080p 1 Channel Video Converter HDCVI/TVI/AHD Fiber optic Video Transceiver Wall mounted

Product Details:

Place of Origin:	China
Brand Name:	Ho-Link
Certification:	CE/ROHS/FCC/SGS
Model Number:	H-CVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity:	50 Pairs
Price:	Negotiable
Packaging Details:	Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time:	1-3 working days after received your payment
Payment Terms:	T/T, Western Union
Supply Ability:	3,000pcs per month

Contact Now

Detailed Product Description

Video Input:	1 Volt Pk-pk (75 Ohms)	Bit Resolution:	8-Bit Digital Transmission
Fiber Connector:	FC Or ST Or SC	Distance:	10km~80km (Optional)
Input Level:	>500mVp-p	Self-adaption Cable Equilibrium:	1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m
Input/Output Impedance:	75 Ω

HDCVI High performance video converter single channel for PTZ Controling optical converter BNC Digital Video Converter

Specifications:

Feature	Description
Optical	Fiber Type	Multi-mode fiber or Single mode fiber
	Fiber Connector	FC or ST or SC
	Distance	0km~80km (Optional)
	Wavelength	Transmitter T1310nm, R1550nm. Receiver T1550nm,R1310nm.
HDCVI(Transmitting)	Input level	>500mVp-p
	self-adaption cable equilibrium	1080p:75-5 coaxial cable,300m 720p:75-5 coaxial cable,500m
	Input/Output Impedance	75 Ω
	Physical Interface	1~64 channels BNC connector
HDCVI(Receiving)	Output level	1Vp-p
	Input/Output Impedance	75Ω
	Physical Interface	1~64 channels BNC connector
Data	Transmission Media	Coaxial cable
	Baud Rate	1200～9600bit/s
	Bit Error Rate	≦10
	Operation Mode	Half-Duplex
	Indicators	LOS,PWR,DATA,VIDEO
	Mean time between failures(MTBF)	＞100 000 hours
General	EPS	DC5V
	Power Consumption	≦5W
	Operation Temperature	—40℃～75℃
	Operation Humidity	10%～90%
	Atmospheric Pressure	86kpa~106kpa
	Mounting Method	Wall mounted

Description:

Ø Non-compression coding technology

Ø Automatically identify formats of input videos

Ø Support transmission of 1 channels AHD signal and controlling data simultaneously though coaxial cable

Ø DC 5V power supply

Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc

Ø Through LED indicators to inform its functional mode

Ø Industrial wide range of operational temperature

Ø Plug and play, simple installation

Applications:

City traffic monitoring system
Public security, safe city monitoring system
Highway security protection, charging system
Building, campus monitoring net
Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
electric power, oilfield, television program transmission system
Gymnasium (live video, audio transmission)

HD 1080p 1 Channel Video Converter HDCVI/TVI/AHD Fiber optic Video Transceiver Wall mounted

Order Information:

Part No.	Description
H-TVI/CVI/AHD-1V-T/RF	1 Ch Forward TVI/CVI/ AHD Video
H-TVI/CVI/AHD-1V1D-T/RF	1 Ch Forward TVI/CVI/ AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-2V-T/RF	2 Ch Forward TVI / CVI / AHD Video
H-TVI/CVI/AHD-2V1D-T/RF	2 Ch Forward TVI / CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-4V-T/RF	4 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-4V1D-T/RF	4 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-8V-T/RF	8 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-8V1D-T/RF	8 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-16V-T/RF	16 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-16V1D-T/RF	16 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data
H-TVI/CVI/AHD-32V-T/RF	32 Ch Forward TVI /CVI / AHD Video
H-TVI/CVI/AHD-32V1D-T/RF	32 Ch Forward TVI /CVI / AHD Video+1 Ch Reverse Data

We have a large number of HD-CVI/TVI/AHD media converter in stock, with good price. Please contact us if you have purchase order. We will do best to support you with pre-sales& after-sales service.
