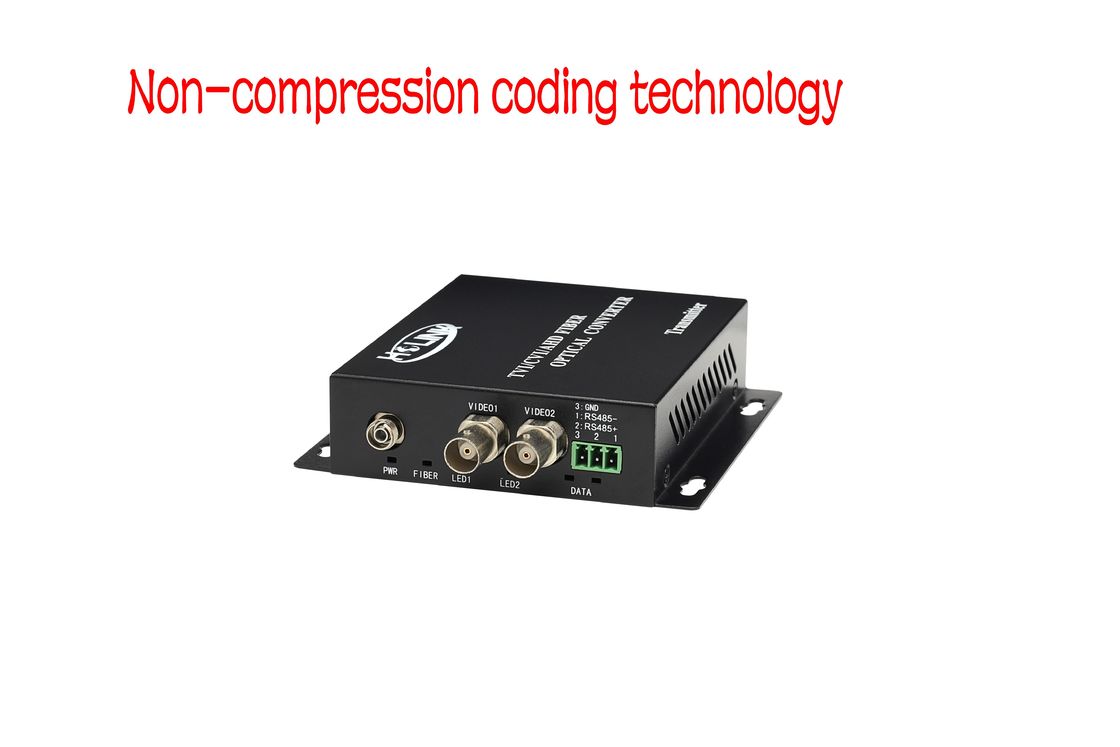

Singlemode 2 Channel Bnc To Fiber HD 1080p Video Converter With 1RS485 Data

China Singlemode 2 Channel Bnc To Fiber HD 1080p Video Converter With 1RS485 Data supplier

Large Image :  Singlemode 2 Channel Bnc To Fiber HD 1080p Video Converter With 1RS485 Data

Product Details:

Place of Origin: China(mainland)
Brand Name: holink
Certification: CE FCC RoHS
Model Number: H-CVI/TVI/AHD-1V-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 1pair
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days
Payment Terms: D/P, T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
Data Protocol: RS485 422 232 Transmission Distance: 20KM
Resolution: 1080/720P Wavelength: 850/1310µm(Multi-mode)
Video Bandwidth: 5Hz~10MHz Interface: BNC Outlet

2 Channel bnc to fiber video converter Singleode SIngle fiber 20km with 1RS485 Data

Overview:


    1CH AHD Video Data Fiber Converter support 1CH 720p / 25,720p / 30,720p / 50,720p / 60,1080p / 25,1080p / 30 AHD coaxial analog HD video with 1CH reverse/bidi RS485 data over a single fiber optical fiber , using self-developed non-compressed digital photoelectric conversion technology, , to achieve megapixels level analog HD video point to point highly and reliably transmission over fiber without delay,


    The digital video optical transmitters and receivers (video converters) transmit high fidelity signals of video, audio, data ,telephone, etc. with advanced technology which enables efficient transmission with minimum disturbance.





Feature:

  • 1. Non-compression coding technology.
    2. Support 25/30/50 / 60fps 720P & 25 / 30fps 1080P
    3.Support 1~16ch HD-CVI/TVI/AHD signal and controlling data simultaneously through coaxial cable
    4. Wide optical dynamic range and advanced adaptive technology, transmissiondistance up to 20KM
    5. The surface mount devices, to ensure that products are small, high stability, high reliability
    6.Low electromagnetic interference (EMI), radio frequency interference (RFI)as well as common ground loop interference
    7. Rich LED indicator diagnostic indication
    8. Plug and Play, hot swappable
    9. DC 5V power supply
    10. Industrial wide temperature range (-30 ℃ ~ + 75 ℃), to adapt to the more environment
    11. support user customization and OEM




Application:


Singlemode 2 Channel Bnc To Fiber HD 1080p Video Converter With 1RS485 Data





Specification


Optical Parameters
Wavelength 850/1310µm(Multi-mode)
1310/1550µm(Single Mode)
Optical Interface FC, SC, and ST optional
Video Parameters
Interface BNC outlet
Nominal Input/output PWL 1.0Vp-p
Nominal Input/output Impedance 75Ω(Unbalanced)
Video Bandwidth 5Hz~10MHz
Weighted Signal/noise Ratio ≥65dB
Audio Parameters
Frequency Width 20Hz~20KHz
Audio Direction Forward, reverse, or bi-direction optional
Interface RCA, Terminal block optional
Input/output Impedance 600Ω(Balanced / Unbalanced)
Weighted Signal to noise Ratio >85dB
Data Parameters
Data Type RS232, RS485, RS422, Manchester, Bi-phase
Data Direction Forward, reverse, or bi-direction optional
Interface RJ45, Terminal Block optional
Communication Speed 0~300Kbps
Work Mode FDX/semi duplex
Error Code Rate < 10-9










Shipping and packing


Package:neutral /standard/customized packing



Shipment :DHL /TNT /EMS etc.(enable the fastest delivery to your place)



Warranty: 3 years
