80KM distance SDI Video fiber Converter , digital signal fiber optical transmitter receiver with 1 Reverese RS485 Data

China 80KM distance SDI Video fiber Converter , digital signal fiber optical transmitter receiver with 1 Reverese RS485 Data supplier
80KM distance SDI Video fiber Converter , digital signal fiber optical transmitter receiver with 1 Reverese RS485 Data supplier 80KM distance SDI Video fiber Converter , digital signal fiber optical transmitter receiver with 1 Reverese RS485 Data supplier 80KM distance SDI Video fiber Converter , digital signal fiber optical transmitter receiver with 1 Reverese RS485 Data supplier

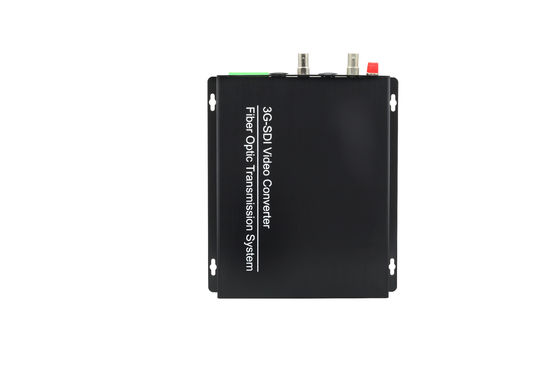

Large Image :  80KM distance SDI Video fiber Converter , digital signal fiber optical transmitter receiver with 1 Reverese RS485 Data

Product Details:

Place of Origin: CHINA
Brand Name: HO-LINK
Certification: CE RoHS FCC
Model Number: HL-HDSDI-4V1D-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 10 pairs
Price: negotiation
Packaging Details: international standard package
Delivery Time: 3-5 working days after payment
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000pairs one month
Contact Now
Detailed Product Description
DC Offset (maximum Allowable): 5V Output Impedance: 75Ω
Resolution: 1080/720P Data Format: RS-485/422,RS232
Optical Interface: FC SC ST Fiber Mode: Single Mode Or Multiple Mode



80KM SDI Video Converter , digital fiber optical transmitter receiver with 1 Reverese RS485 Data







Overview





     Model SDI Video Digital Fiber Mux Internationally advanced SOC digital signal processing technology and full digital video non-compression transmission technology are used in full digital video + optional optical transceiver, to real-time synchronize one-way high-definition SDI video and data/ switching value in single-core optical fiber and achieve lossless and high-quality transfer. Advanced high-stability components are used in optic circuit and core circuit of high-definition full digital video optical transmitter and receiver, and all optical/electric interfaces are in accordance with international standards, free of adjustment prior to mounting and applicable in various operating environments.











Features





  • 1, Digital Video Optical Transmission transmit signals of 1~4 channel video.

    2, One-way or two-way audio/ data and switching capacity through an optical fiber.

    3, Adopt the full digital video non-compressed transmission technology.

    4,Video quality can achieve broadcast standards and Audio quality can achieve CD level.

    5, Adopt independent type or frame structure to install.

    6, Completely suitable for all kinds of harsh working conditions environment.

    7, 100% burn-in test before delivery.

    8, RoHs compliance.

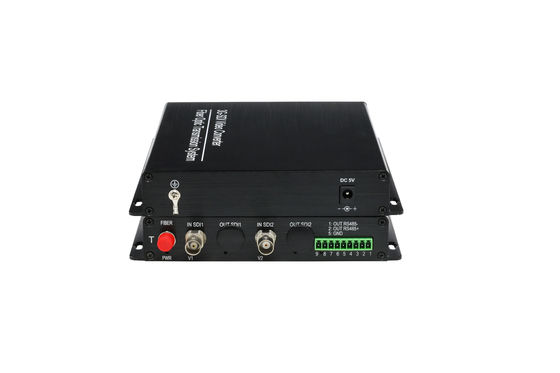

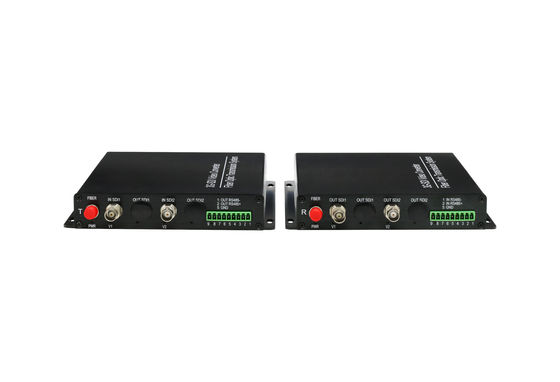

4K-SDI To Fiber Optic Panel And Connection Graphs








80KM distance SDI Video fiber Converter , digital signal fiber optical transmitter receiver with 1 Reverese RS485 Data









Specifications







SPECIFICATION
Video
Standard
SMPTE-292M HD-SDI standard
Rate
1.485Gb/s
Output impedance
75Ω
Return loss
>15dB
Power level
800mVp-p ± 10%
Interface
BNC
Video memory
<0.8ns
SD-SDI aiming jitter (1KHz~27MHz)
<0.2UIp-p
SD-SDI timing jitter (10Hz~27MHz)
<0.2UIp-p
HD-SDI aiming jitter (100KHz~148.5MHz)
<0.2UIp-p
HD-SDI timing jitter (10Hz~148.5MHz)
<1.0UIp-p
Optical performance
Output/Input wavelength
1310nm/1550nm
Transmission power
+2dBm~-3dBm, 0dBm~-5dBm, -8dBm~-15dBm,
Sensitivity
Better than -24dBm
Interface
LC/SC/FC
Fiber mode
Single mode or multiple mode
Transmission distance
20/40/80km
Data (optional)
Output/Input wavelength
1310nm/1550nm
Transmission power
+2dBm~-3dBm, 0dBm~-5dBm, -8dBm~-15dBm
Sensitivity
Better than -24dBm
Interface
LC/SC/FC
Fiber mode
Single mode or multiple mode

Transmission distance
20/40/80km
Data (Optional)
Data format
RS-232/422/485
Data baud rate
0~115.2Kbps
Data sample frequency
2MHz
Symbol error rate
<10-9
Connector
PHOENIX
Audio (optional)
Sample frequency
32KHz
Audio sample encoding
18bit
Input impedance
High impedance (non equilibrium)
Output impedance
75Ω (non equilibrium)
Max input/output voltage
3.5Vp-p
Insertion gain
0dB±1dB
Frequency response
0.07~14KHz@3dB
SNR
≥85dB (weighting)
Audio intercom
Support Aiphone, Lonbon Half-Duplex intercom system
Switching value
(optional)
Interface
PHOENIX
Input signal
Active or passive switching value
External feed
5V
Output signal
Relay switch output













Shipping and packing:





80KM distance SDI Video fiber Converter , digital signal fiber optical transmitter receiver with 1 Reverese RS485 Data

Warranty policy



Vedio convertor is three year warranty as following::



The factory warranty period is three years from date of delivering goods.



The buyer should return the goods if it donot working well within 3 month,the seller will give money back. Or seller send new item to replace bad item,all transportation cost be paid by seller.



after 3 to 6 monthes,repair free,half transportation cost for both,pass for 6month the cost we need discuss.









FAQ

* Q.:1.Are you a manufactory or trade company & is it possible for us to visit your factory?
* A.: Welcome to visit our factory.Our factory is located in BaoAn district ,ShenZhen.
We have our own factory .


* Q.:2.what's the minimum order(MOQ) ?
* A.:Our company mainly deals with wholesale deals,but if you just need one set,we would like
be very likely to make the MOQ as 1 set,except for some particularly products.

* Q.:3.Is OEM available?
* A.: OEM is available.you can print your logo on the products.



* Q.:4.How long is your lead time?
* A.:If we have stock,the lead time is 3 days.If It's OEM oder,the lead time is 2-3 weeks.
