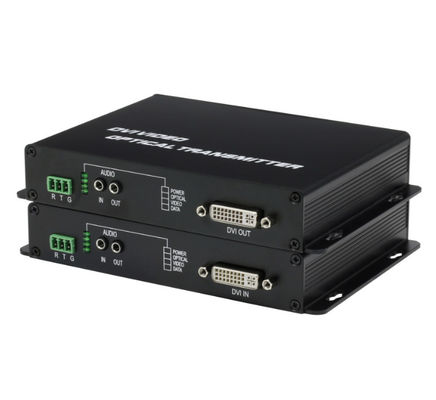

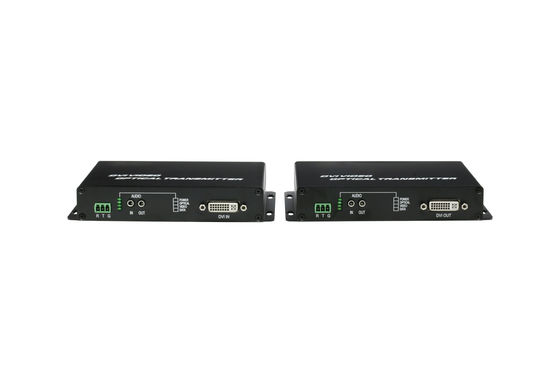

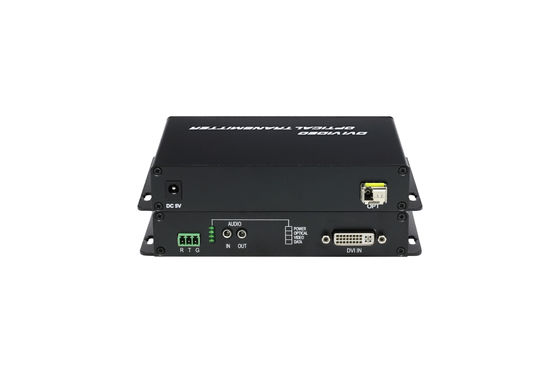

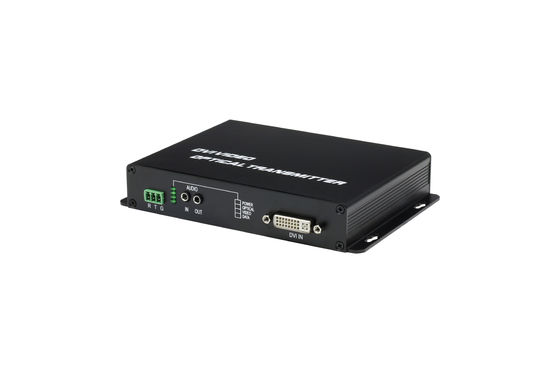

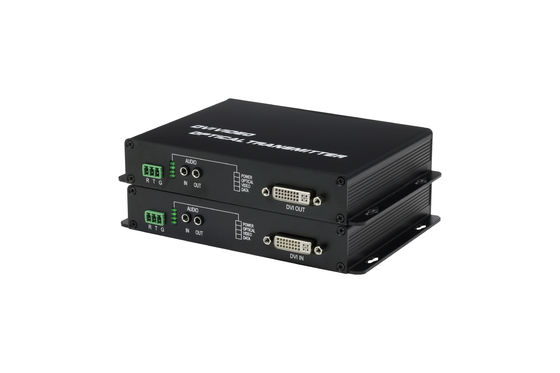

1-Ch RS232 Data HDMI / VGA / DVI Video To Fiber Converter Support 1080P@60Hz

China 1-Ch RS232 Data HDMI / VGA / DVI Video To Fiber Converter Support 1080P@60Hz supplier
1-Ch RS232 Data HDMI / VGA / DVI Video To Fiber Converter Support 1080P@60Hz supplier 1-Ch RS232 Data HDMI / VGA / DVI Video To Fiber Converter Support 1080P@60Hz supplier 1-Ch RS232 Data HDMI / VGA / DVI Video To Fiber Converter Support 1080P@60Hz supplier 1-Ch RS232 Data HDMI / VGA / DVI Video To Fiber Converter Support 1080P@60Hz supplier 1-Ch RS232 Data HDMI / VGA / DVI Video To Fiber Converter Support 1080P@60Hz supplier

Large Image :  1-Ch RS232 Data HDMI / VGA / DVI Video To Fiber Converter Support 1080P@60Hz

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/FCC/ROHS
Model Number: H-VGA-1V1D1A-T/RL

Payment & Shipping Terms:

Minimum Order Quantity: 1pair
Price: Negotiable
Packaging Details: International Standard Package
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pairs per month
Contact Now
Detailed Product Description
Product Name: VGA Over Fiber Converter Transmission Wavelength: 1310nm/1550nm
Type: Single-mode Transmission Distance: 20KM
Humidity: 0-95% (non-condensing) Wave Length: 850nm/1310nm/1550nm

VGA Video Converter with 1-Ch RS232 Data, HDMI/VGA/DVI video to fiber converter, support 1080P@60Hz



Overview:



   This high-end fiber VGA/DVI/HDMI extender is designed specially for the projects that require transmitting high definition signals to remote location . The product includes a transmitter and a receiver, which can extend video, audio, RS232,and MIC interfaces of computer max up to 2km/20km over SM/MM fiber cable, so that users can see the picture image and hear the voice of computer remotely.
   They are widely used in military command and control system, police command and control system, traffic management system, energy and electricity supply industry, government office, medical system, commercial presentation, multimedia and public utilities etc.









Main features:


  1. Support 1920*1080 @ 60Hz.
  2. Max extension distance 2KM(MM)/20KM(SM).
  3. Support plug and play, compatible with all operation system.
  4. Support VGA/DVI/HDMI,USB,audio,MIC,RS232 signals.
  5. Support adjustment of sampling frequency, phase, and image horizontal/vertical position, as well as the signal input indication.









Specifications:




Video I/O connector VGA/DVI/HDMI
HDMI version HDMI1.1 1.2 1.3
HDCP HDCP1.2
HDMI resolution 1080p/1080i/720p/720i/576p/576i/480p/480i
Video color format 24bit/deep color 30bit/deep color 36bit
Audio format DTS/HD/Dolby-tureHD/LPCM7.1/DTS/Dolby-AC3/DSD
TMDS 0.5-1.5Vp-p(TTL)
DDC 5Vp-p(TTL)
Input cable length ≤20m AWG26 HDMI 1.3 standard cable
Output cable length ≤20m AWG26 HDMI 1.3 standard cable
USB Protocol Support USB2.0 protocol
Audio Connector USB-to-3.5mm audio Jack
Optical Connector SM/MM SC/FC type
Wave length 850nm/1310nm/1550nm
Physical Size (L× W ×H) Sender : 164mm*115mm*26mm
Receiver: 164mm*123mm*26mm
Case metal
Color Black
N.W. 0.75Kg
Power Voltage 5V DC
Power consumption 15W
Environment Working temperature -15℃-55℃
Storage temperature -40-80℃
Humidity 0-95% (non-condensing)








Application Diagram:

1,Connect VGA input signal to VGA_IN port by VGA cable
2,Connect VGA output signal to VGA_OUT port by VGA cable
3,Connect audio input signal to AUDIO IN
4,Connect audio output signal to AUDIO OUT
5,Connect serial port to UART
5,Connect LCfiber to OPT IN and OPT OUT
6,Power on

System connection diagramfiber optics to rf media converter




Shipping:

  1. . Package List
    >VGA optical fiber transmitter ………. 1 pc
    >VGA optical fiber receiver ……………. 1 pc
    >Fiber optic module TX/RX ……………. 1 set
    >Power adapter ………………………………2 pcs
    >User manual ………………………………… 1 pc

    2. Shipment:
    > Via DHL, TNT, FEDEX, UPS, EMS, Special line etc,. It takes 3~7 days.
