Hot sell DVI Transmitter 1ch RS232 Data DVI Digital Video To Fiber Optic Media Converter

China Hot sell DVI Transmitter 1ch RS232 Data DVI Digital Video To Fiber Optic Media Converter supplier
Hot sell DVI Transmitter 1ch RS232 Data DVI Digital Video To Fiber Optic Media Converter supplier Hot sell DVI Transmitter 1ch RS232 Data DVI Digital Video To Fiber Optic Media Converter supplier Hot sell DVI Transmitter 1ch RS232 Data DVI Digital Video To Fiber Optic Media Converter supplier Hot sell DVI Transmitter 1ch RS232 Data DVI Digital Video To Fiber Optic Media Converter supplier Hot sell DVI Transmitter 1ch RS232 Data DVI Digital Video To Fiber Optic Media Converter supplier

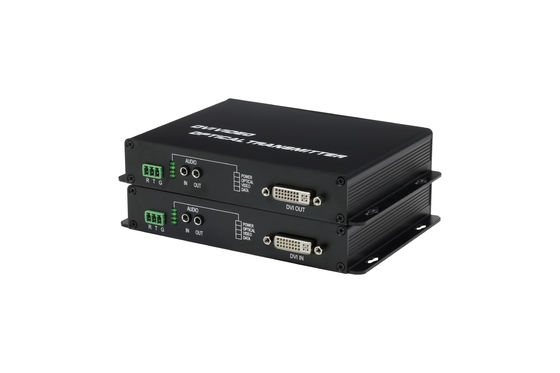

Large Image :  Hot sell DVI Transmitter 1ch RS232 Data DVI Digital Video To Fiber Optic Media Converter

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/FCC/ROHS
Model Number: H-DVI-2V1D1A-T/RL

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: International Standard Package
Delivery Time: within 3 working days after payment confirmed
Payment Terms: T/T or western Union or Paypal
Supply Ability: 3,000pairs per month
Contact Now
Detailed Product Description
Product Name: DVI To Fiber Converter Input Voltage: DC 5V,inside+ Outside-
Digital Bits Wide: 10 Bits Interface: Industrial Terminal
Connector: HD-15(DVI,HDMI Optional) Corlor: Black

DVI video over fiber transmitter and receiver with 1ch RS232 data, DVI digital video to fiber optic media converter





Hot sell DVI Transmitter 1ch RS232 Data DVI Digital Video To Fiber Optic Media Converter

Overview:



  1-channel DVI/VGA video signal and 1-channel stereo audio and 1-ch data RS232 over one fiber, single mode or multimode, without compression, scaling and adjustments. It is ideal for Digital signage, broadcast or corporate studio, auditorium, stadium and theater, airport or transportation hub, distance learning, and surgical or medical imaging applications, to name a few.











Main features:




« 1-channel DVI/VGA video signal of computer and 1-channel stereo audio and 1-ch data RS232 over one fiber optic

« 10-bit digital video encoding and uncompressed transmission technology

« Applied to the needs of computer long-distance transmission of industrial monitoring, large venues etc…

« Strictly selection material and quality control in order to ensure high quality and high reliability

« DVI/HDMl interface optional

« System status could be monitored by the power and other parameters LED indicator

« Compact size

« Excellent cost performance

« SMT Surface Mount Technology

« Stand-alone

« Lower power consumption and free installation, debugging

« Also Support VGA signal











Specification:







Video
Channel 1
Type RGB with stand-alone and sync H, V
Input level 1Vp-p
Output level 1Vp-p
Bandwidth (-3 dB) 300MHz
Digital bits wide 10bits
Connector HD-15(DVI,HDMI optional)
Resolution •640X480 @ 70fps
•1920X1080 @ 25fps
•1024X768 @ 60fps
•800X600 @ 70fps
•1600X1200 @ 30fps
• 1280X1024 @ 30fps
•720X576 @ 50fpsv
•720X480 @ 60fps
•1440x900 @ 30fps
•1280X720 @ 30fps
•1680x1050 @ 30fps
•1400 x1050 @ 30fps
•1360x768 @ 30fps
Audio
No. 1
Input/output level 5Vp-p,unequilibrium
Connector Standard 3.5 mm stereo headphone jack
RS232 indication
Input/output interface 9-hole standard RS232 socket
Signal rate 115200bps
Signal level RS232 standard level
Optics
Type Single-mode
Output optical power -5 ~ -10dBm
Receiver sensitivity 18dBm
Wavelength 1310/1550nm
Connector FC/PC (SC/PC optional)
Max. Link loss 12dB (bigger options)
Connector FC/PC (SC or ST optional)
Power and environmental indicator
Stand-alone power 5W
Insertion power 5W
Power adapter 220VAC to 12VDC/1A
Operating temperature -40°C to +70°C
Relative humidity < 95% (no condensation)
Dimension









Applications:

  • Police and safe city monitoring system
  • Express way security protection and toll station system
  • City traffic monitoring system
  • Building and campus monitoring system
  • Industrial monitoring (airport, chemical plant, railway, etc.)
  • Military monitoring (frontier defense, national defense)
  • Electronic power oil field, TV station program broadcasting
  • Gymnasum (live video and audio transmission)













Shipping and packing:





The shipping route is DHL,TNT,UPS,EMS etc.

International standard package

shipped: 2-3 working days after payment
