Product Name: HD-SDI To Fiber Converter Output Level: 800mVp-p±10%
Sample Frequency: 48KHz Reflection Loss: 10/100Mb/s
Dimension: 136*130*30mm Bit Rate: -5℃ ~ +70℃



HD-SDI 2CH optical transceiver module Fiber media converter extender up to 20km







Product Description

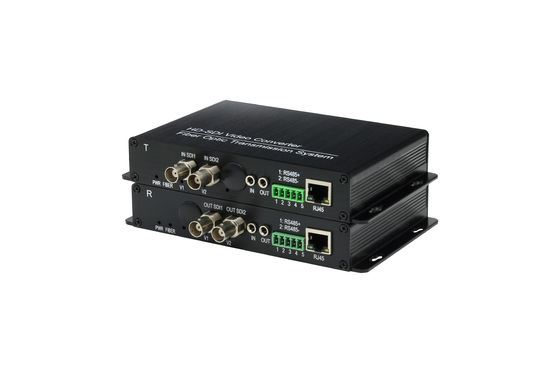

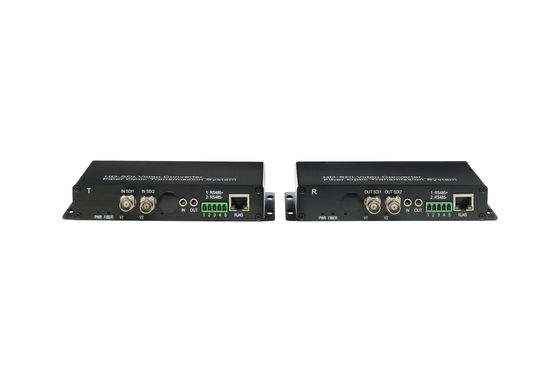

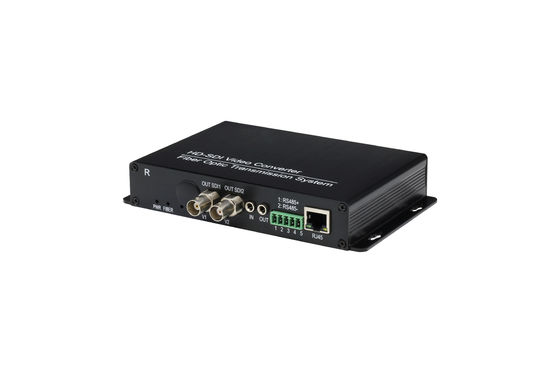

     It is a 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.m







Features



•1/2/4/8 Channels Video of SD-SDI/HD-SDI/3G-SDI can be transmitted via 1 single fiber

The Max rate of work is 3.2Gb/s

Support SMPTE 292M (2.9Gb/s) clock recovery

• Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI)

• Out wavelength range is 1310nm,1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)

• Automatic cable equalization ,used for all rate below 3.2 Gb/s(Belden 1694A)

LED Status Indication to monitor the working conditions

Video transmission system can support many application branches structure

•The fiber port Support SFP transceiver hot-plugged

The SDI video format support:

625/25 PAL

525/29.97 NTSC

525/23.98 NTSC

720p50,720p59.94

1080P 23.98/24/30/50/60

1080i 23/24/30/50/59.94









Typical application

HD-SDI 2CH Optical Transceiver Module Fiber Media Converter Extender Up To 20 km



HD-SDI 2CH Optical Transceiver Module Fiber Media Converter Extender Up To 20 km







Remark



•The Optical Power Budget fit Multi-mode(62.5/125m),Single-Mode(9/125 m).

•When using 50/125 m multimode fiber, subtract 3 dB from the optical power budget.

•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.

•Maximum transmission distance is also limited by fiber bandwidth.

•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.

•Please feel free to contact factory for any special requirement and customization









4. Technical Specification

Item Typical value
HD-SDI Interface
Connector BNC
Bit rate 1.485Gb/s
Impedance 75Ω
Return loss >15dB
Output level 800mVp-p±10%
Rise and fall time(HD-SDI) ≤270ps
HD-SDI Alignment jitter (100KHz) ≤0.2UI
HD-SDI Timing jitter (10Hz) <1.0UI
Standard Comply to SMPTE-292M HD-SDI standard
Audio Interface (Optional)
Connector PHOENIX connector
Impedance Input high-impedance, output 600Ω
Quantization grade 24 bits
Sample frequency 48KHz
Audio input/output voltage 2VP-P
Bandwidth 20Hz~20KHz
Total Harmonic Distortion 0.1%
FE Interface
Connector RJ45
Frame length From 64 bytes to 1552/1536 bytes
Working mode Auto-negation by default
Bit rate 10/100Mb/s
Duplex Half/full duplex
Port VLAN Default settings: closed. That is , all the port share the same LAN.
Flow Control Default settings: open
Standard IEEE802.3u 100Base-TX/ IEEE802.3 10Base-T
RS485 Interface
Connector PHOENIX connector
Baud rate 0~115.2Kb/s
Bit error ratio <10-9
Duplex Half-duplex
CONSOLE Interface
Connector RJ45
Baud rate 38400
bits 8
Stop bit 1
parity check None
EMU/EMU-EX Interface
Connector RJ45
Bit rate 10Mb/s or 100Mb/s auto adaptive
Power and Consumption for desktop equipment
Power supply DC 12V
DC input voltage range 8V~14V
Power consumption 3W±10%
Power and Consumption for rack mounting chassis
Power supply AC 220V /DC-48V
DC input voltage range -36~-72V DC
AC input voltage range 176~264V
Power consumption for each card 3W±10%
Environment Requirements
Working temperature -30~60
Relative Humidity ≤95%, no condensation
Storage temperature -40~85
Equipment dimension

Dimension of Rack mounting chassis

(with rack ear)

330mm x 178mm x 482mm
Desktop equipment dimension 180mm x 123mm x 30mm
