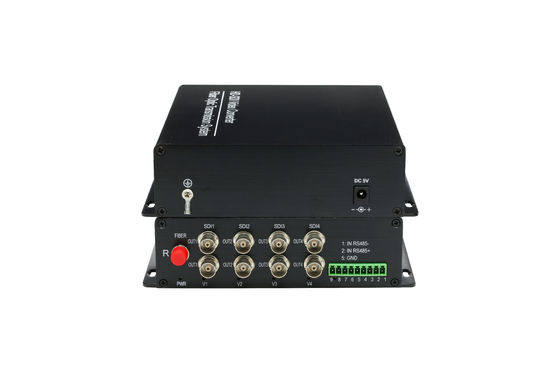

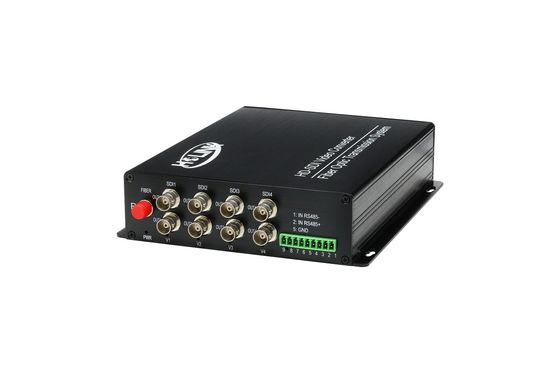

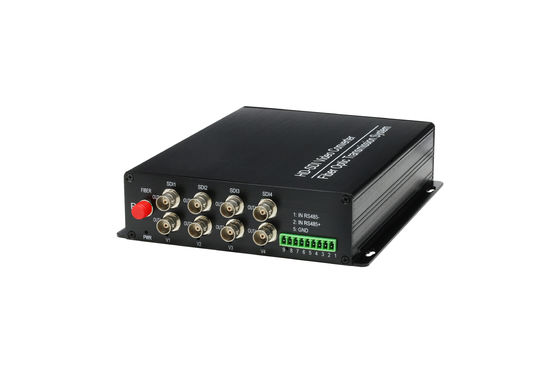

5V DC HD-SDI Fiber Optic Video Transmitter Embedded With Audio + 1 Ch Return

China 5V DC HD-SDI Fiber Optic Video Transmitter Embedded With Audio + 1 Ch Return supplier
5V DC HD-SDI Fiber Optic Video Transmitter Embedded With Audio + 1 Ch Return supplier 5V DC HD-SDI Fiber Optic Video Transmitter Embedded With Audio + 1 Ch Return supplier 5V DC HD-SDI Fiber Optic Video Transmitter Embedded With Audio + 1 Ch Return supplier 5V DC HD-SDI Fiber Optic Video Transmitter Embedded With Audio + 1 Ch Return supplier

Large Image :  5V DC HD-SDI Fiber Optic Video Transmitter Embedded With Audio + 1 Ch Return

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-1V-20T/R/HD-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: HD-SDI To Fiber Converter Video Input: 1, 2,4 Channels
Voltage: 5VDC Reflection Loss: >15DB
Dimension: 136*130*30mm (MTBF): More Than 100,000 Hours



HD-SDI over fiber video converter,1/2/4/8/16-Ch HD-SDI video embeded with audio+1Ch Return 485/232/422,data,1.25G







Product Description





     It is a 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.m







Key Features



3G/HD/SD-SDI high definition digital code and non-compressing video transmission

Work ranges from 270 Mbps to 2.97Gbps.

Support all SMPTE 259M standard, work in 270Mbps - 360Mbps

Support SMPTE424M,SMPTE292M, SMPTE259M, SMPTE344M and DVB-ASI(270Mb/s) standards

300M (1000ft) automatic cable-balance @ SD mode;150 M (500ft) automatic cable-balance@ HD/3G(Belden 1694A)

LED indicators for monitoring of system operating status

Network management function are optional

Reverse Rs485/ 232 data are optional

Standalone or 19 "standard 3U,4U,5.5U rack mounting

Special ASIC design, support Hot-swap function

Support 3G/HD/SD high-resolution video signal

In the absence of input signal, automatically shut down the laser head to extend laser life

Optical output wavelength ranges from 1310nm, 1550nm to up to 16 CWDM wavelengths (ITU-T G.694.2 compliant)







Basic Benchmarks



Serial TV BNC input



TV Signal Standards

SMPTE424M,SMPTE292M, SMPTE259M, SMPTE344M ,DVB-ASI and Other Telecom/ Datacom rate (270Mbps -2.97Gbps)
Video Input 1, 2,4 channels
Return Loss >15DB
Balance 0-150m @ 1.5Gb/s
Video Connector 75Ω BNC
Optical Output 1
Fiber Type Single mode Single fiber(Multi mode is optional)
Wave length 1310nm /1550nm
Return Loss > 15dB
Shake < 0.2UI
Optical Connector LC/ ST/FC optional
Reverse Data RS485/RS232 Transmission Speed 0 to 400Kbps
Bit Error Rate < 10 -12
Serial TV Output BNC output (EO/OE) as input
Video Output 1, 2, 4 channels;
Signal level 800mV nominal
Rise/fall time 200ps nominal
Overshoot < 10% amplitude
Return Loss more than 15dB
Shake < 0.2UI
Connector 75Ω BNC
Working Temperature -15°C~+85°C
Voltage 5VDC
Power Consumption 1V<10W; 2V/4V<15W
EMI/RFI Accord with FCC Part 15 Class A, EU EMC standards
(MTBF) more than 100,000 hours
