1-Ch SDI 1080P Video Hd Sdi To Fiber Optic Converter With 1 Ch Forward Audio

China 1-Ch SDI 1080P Video Hd Sdi To Fiber Optic Converter With 1 Ch Forward Audio supplier
1-Ch SDI 1080P Video Hd Sdi To Fiber Optic Converter With 1 Ch Forward Audio supplier 1-Ch SDI 1080P Video Hd Sdi To Fiber Optic Converter With 1 Ch Forward Audio supplier 1-Ch SDI 1080P Video Hd Sdi To Fiber Optic Converter With 1 Ch Forward Audio supplier 1-Ch SDI 1080P Video Hd Sdi To Fiber Optic Converter With 1 Ch Forward Audio supplier

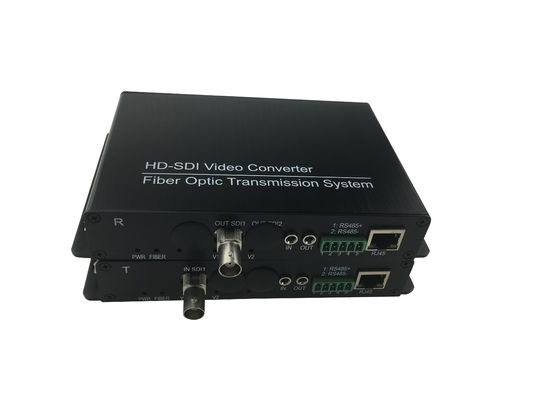

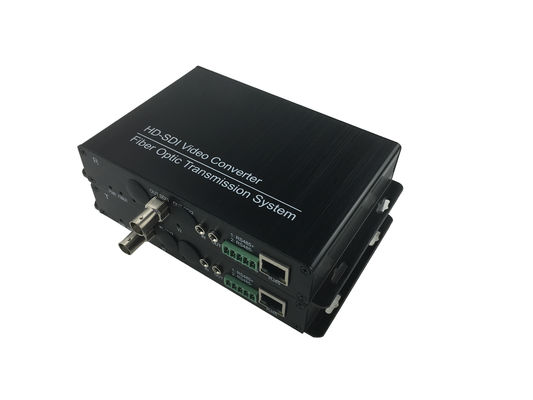

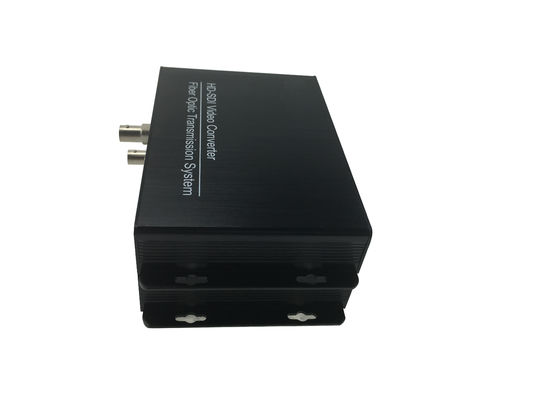

Large Image :  1-Ch SDI 1080P Video Hd Sdi To Fiber Optic Converter With 1 Ch Forward Audio

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-1V-20T/R/HD-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Video: 8 Channels Compatible Video System: PAL,NTSC,SECAM
Transmission Distance: 20KM (single Mode) Reflection Loss: >15DB
Dimension: 136*130*30mm Operating Temperature Range: -5℃ ~ +70℃



1-Ch SDI 1080P Video HD-SDI Fiber Optical Transceiver with 1-Ch Forward Audio







Product Description





     It is a 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.m







Features



1.8channels encoded and non-compression broadcast quality video transmissionDirectly compatible with NTSC, PAL, and

2.SECAM CCTV camera systems and support RS-232, RS-422, and RS-485 data protocolsSupport any high-resolution video signal

3.Automatic compatible PAL, NTSC and SECAM video system

4.1-4 channels audio (optional)

5.1-4 channels asynchoronus data (optional)

6.1 port 10/100Mbps ethernet (optional)

7.Power supply and other parameter status indication, which can monitor the operation condition of system

8.Support no-damage regenerative trunk of video

9.Constant input optical power, and large dynamic range ,no Electrical or Optical Adjustments Required .

10.Industry-grade of operating temperature from -40 to 85 degree , which is applied to the different working environment

11.Hot-swap supportted

12.Stand-alone type or card-type installed in 19 inch 2U or 4U rack-mount chassis.









Typical application

1-Ch SDI 1080P Video Hd Sdi To Fiber Optic Converter With 1 Ch Forward Audio











Remark



•The Optical Power Budget fit Multi-mode(62.5/125m),Single-Mode(9/125 m).

•When using 50/125 m multimode fiber, subtract 3 dB from the optical power budget.

•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.

•Maximum transmission distance is also limited by fiber bandwidth.

•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.

•Please feel free to contact factory for any special requirement and customization









Specifications





Technical Specification
Video
8 channels
Video bandwidth automatic 8MHz
Compatible video system PAL,NTSC,SECAM
Video input / output impedance 75 ohm(unbalance)
Video signal-to-noise ratio more than 67dB
Differential gain (10%-90%APL) DG <1% ( typical value)
Differential phase (10%-90%APL) DP <0.7° ( typical value)
Video connector BNC
Fiber-optic Specification
F/O connector FC/ST/SC
TX Power:-8 ~ -3dBm Sensitivity :≤-35dBm
RX Power:-15 ~ -8dBm Sensitivity :≤-24dBm
Transmission Distance 20KM (single mode)
Operating Wavelength TX1310/RX1550nm(Transmitter);TX1550/RX1310nm(Receiver)
Specification of custom-made options
Data Connector: Terminal Blocks
Encoded type : RS485 / RS422 / RS232 / Manchester
Data rate : 0 - 400Kbps
BER: ≤10-9
Audio Connector: Terminal Blocks
Audio input / output impedance :600Ω(Balance/ unbalance)
Audio input / output voltage :2Vp-p ( typical value)
Audio input / output level :0dBm ( typical value)
Video bandwidth:10HZ~12KHZ
Audio digital encoded bandwidth :24bit
Audio signal-to-noise ratio: S/N≥95dB (weighted)
Telephone
Connector: RJ11
Bandwidth :8KHZ
Features:Support call-showing function ;support H-F
Operating mode : Point to point hotline mode / FXS-FXO
Ethernet Connector: RJ45
Support mode : Half duplex or Full duplex
Standards:IEEE802.3
Data rate : 10M / 100Mbps
Bandwidth: 25M
