HD-SDI data video to fiber optic converter With RS485 data/audio Optical Extender, 20km

China HD-SDI data video to fiber optic converter With RS485 data/audio Optical Extender, 20km supplier
HD-SDI data video to fiber optic converter With RS485 data/audio Optical Extender, 20km supplier HD-SDI data video to fiber optic converter With RS485 data/audio Optical Extender, 20km supplier HD-SDI data video to fiber optic converter With RS485 data/audio Optical Extender, 20km supplier HD-SDI data video to fiber optic converter With RS485 data/audio Optical Extender, 20km supplier HD-SDI data video to fiber optic converter With RS485 data/audio Optical Extender, 20km supplier HD-SDI data video to fiber optic converter With RS485 data/audio Optical Extender, 20km supplier

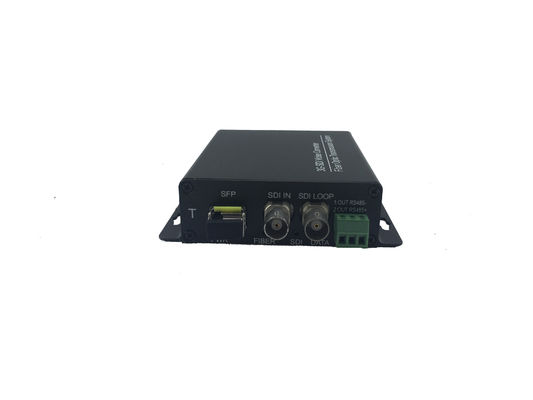

Large Image :  HD-SDI data video to fiber optic converter With RS485 data/audio Optical Extender, 20km

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-1V-20T/R/HD-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 10000pcs/month
Contact Now
Detailed Product Description
Product Name: HD-SDI To Fiber Converter Support Definition: 1080P@30Hz
Equilibrium: 0-150m @1.485Gb/s Bandwidth: 10MHZ
Data Rate: 0~200 Kbps Data Protocol: RS485



 HD-SDI fiber optic converter, 10km support 1080P@60Hz







Product Description





     It is a 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.m

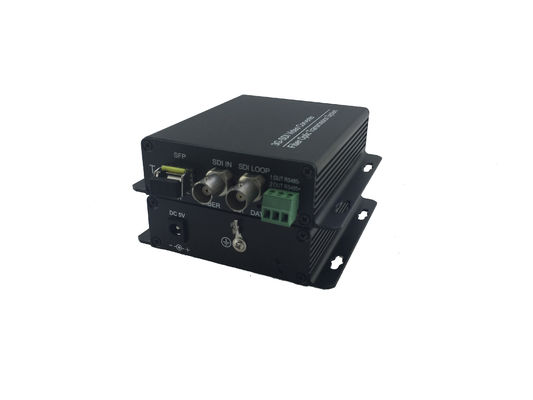

HD-SDI data video to fiber optic converter With RS485 data/audio Optical Extender, 20km





Features



•1/2/4/8 Channels Video of SD-SDI/HD-SDI/3G-SDI can be transmitted via 1 single fiber

The Max rate of work is 3.2Gb/s

Support SMPTE 292M (2.9Gb/s) clock recovery

• Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI)

• Out wavelength range is 1310nm,1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)

• Automatic cable equalization ,used for all rate below 3.2 Gb/s(Belden 1694A)

LED Status Indication to monitor the working conditions

Video transmission system can support many application branches structure

•The fiber port Support SFP transceiver hot-plugged

The SDI video format support:

625/25 PAL

525/29.97 NTSC

525/23.98 NTSC

720p50,720p59.94

1080P 23.98/24/30/50/60

1080i 23/24/30/50/59.94

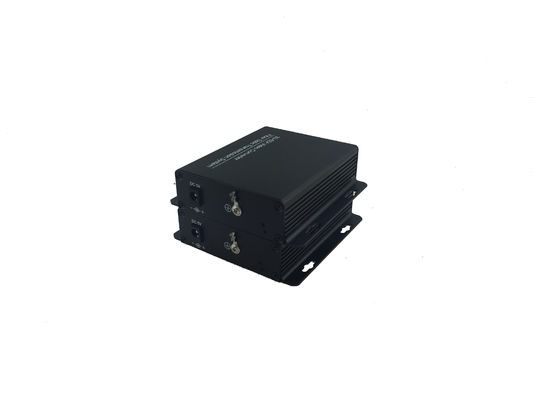

HD-SDI data video to fiber optic converter With RS485 data/audio Optical Extender, 20km



Connect Name Function
S IN/OUT SDI signal input/output
+ / - / G 485 signal interface
OPT Fiber Interface
DC/5V The power adapter input
Light Function
D RS485 The communications light
R system operating
S Video signal lamp
P The indicator system









Remark



•The Optical Power Budget fit Multi-mode(62.5/125m),Single-Mode(9/125 m).

•When using 50/125 m multimode fiber, subtract 3 dB from the optical power budget.

•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.

•Maximum transmission distance is also limited by fiber bandwidth.

•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.

•Please feel free to contact factory for any special requirement and customization









Opitcal:



Wavelength 1310nm&1470nm~1610nm
Output Power -10~-3dBm / -3~+2dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -21dBm
Optical connector FC,ST,SC (optional)
Distance 0~500M (MM) / 0~80KM (SM)





Data:



Data protocol RS485
Data rate 0~200 Kbps
Error rate < 10-9
Connector Standard terminal lead



Video:



SDI Input
Signal Type SDI SMPTE 292M, SMPTE 259M
Data Rates 270Mbit/s - 1.48Gbit/s
Cable Equalization

Automatic cable EQ (Belden 1694A cable)

250m @ 270Mbit/s, 140m @ 1.5Gbit/s

Connector BNC 75 Ohm
General:
Input Power 5 V DC or 12V DC
Power consumption (maximum) Transmitter: 1.8W Receiver: 1.5W
Operating temperature -10°C to 70°C
Storage temperature -40°C to 85°C
Operating humidity 0 ~ 95% (non-condensing)
Net Weight 750g per pair
Case material Aluminum

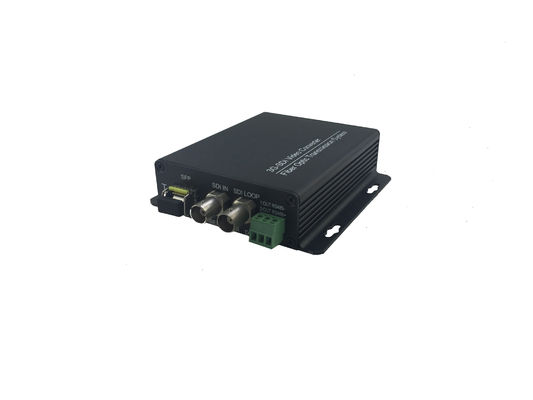

HD-SDI data video to fiber optic converter With RS485 data/audio Optical Extender, 20km

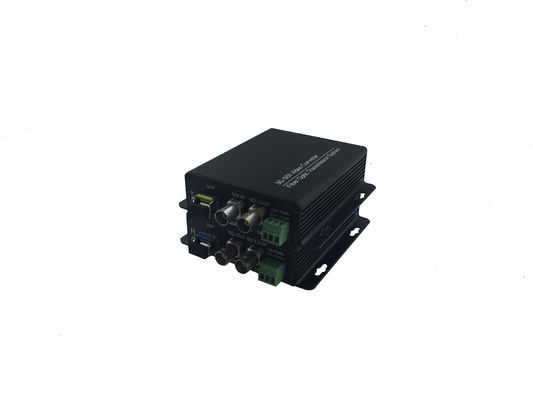

HD-SDI data video to fiber optic converter With RS485 data/audio Optical Extender, 20km
