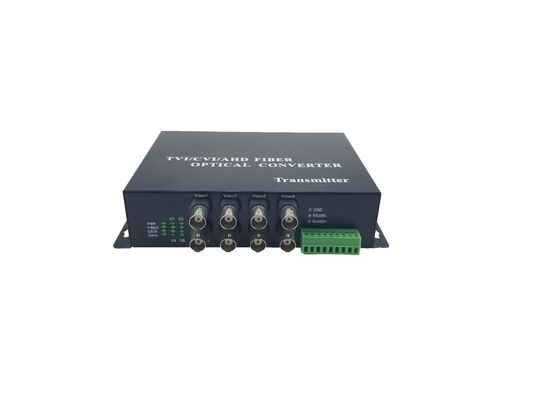

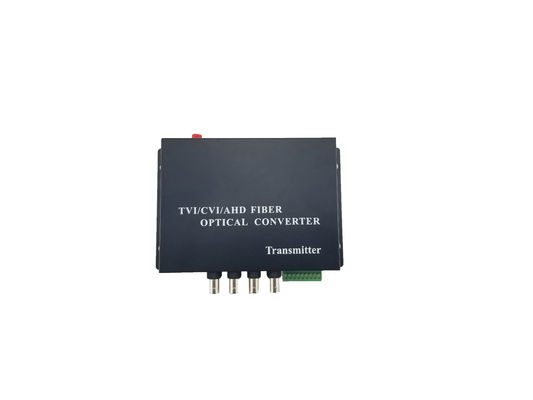

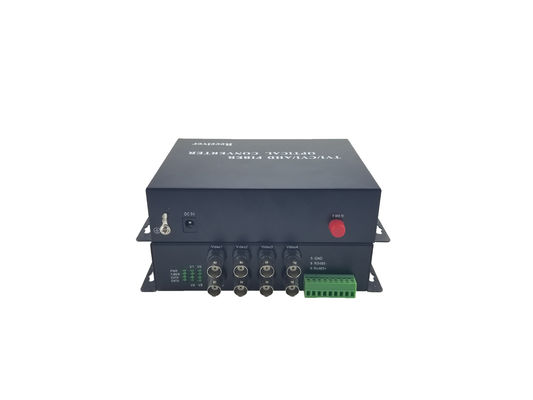

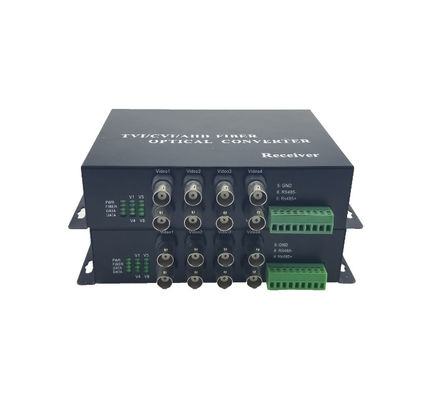

video digital optical converter CVI / TVI / AHD Video To Fiber Converter With Intelligent Transportation System

China video digital optical converter CVI / TVI / AHD Video To Fiber Converter With Intelligent Transportation System supplier
video digital optical converter CVI / TVI / AHD Video To Fiber Converter With Intelligent Transportation System supplier video digital optical converter CVI / TVI / AHD Video To Fiber Converter With Intelligent Transportation System supplier video digital optical converter CVI / TVI / AHD Video To Fiber Converter With Intelligent Transportation System supplier video digital optical converter CVI / TVI / AHD Video To Fiber Converter With Intelligent Transportation System supplier

Large Image :  video digital optical converter CVI / TVI / AHD Video To Fiber Converter With Intelligent Transportation System

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/ROHS/FCC
Model Number: H-4CVI/TVI/AHD-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 1 PAIR
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: within 3 working days after payment confirmed
Payment Terms: TT,Western Union,Paypal
Supply Ability: 10000pair/month
Contact Now
Detailed Product Description
Model Number: 4-Ch HDCVI/TVI/AHD To Fiber Converter Standard Transmission Distance: 0Km-100KM
Rise And Fall Time: <0.8ns Warranty: 3 Years
Optical Signal Intrinsic Jitter: <0.2 UI Optical Wavelength: 1310nm/1550nm

8-ch Digital HD-CVI Video Fiber Optical Converter+1Ch RS485 data





Product Description



Introduction



Video Converter can simultaneously transmit 1-16 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status.



Devices are available for either standalone or rack-mount installation, which is suitable for

different working environment .



Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.







Feature

  • Ø Non-compression coding technology
  • Ø Automatically identify formats of input videos
  • Ø Support transmission of 1~16 channel AHD signal and controlling data simultaneously though coaxial cable
  • Ø DC 5V power supply
  • Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc
  • Ø Through LED indicators to inform its functional mode
  • Ø Industrial wide range of operational temperature
  • Ø Plug and play, simple installation









Application



² City traffic monitoring system

² Public security, safe city monitoring system

² Highway security protection, charging system

² Building, campus monitoring net

² Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)

² Military monitoring (storehouse, frontier defense, guard, nation defense, etc)

² electric power, oilfield, television program transmission system

² Gymnasium (live video, audio transmission)











AHD TO Fiber Converter System connection diagram

video digital optical converter CVI / TVI / AHD Video To Fiber Converter With Intelligent Transportation System





Technical Specification

Opitcal:



Wavelength 1310nm&1550nm
Output Power -8~3dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -25dBm
Optical connector FC,ST,SC (optional)
Distance 0~550M (MM) / 0~80KM (SM)



Video:



Number of Channels 1~16
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC















Packaging & Shipping



1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed

video digital optical converter CVI / TVI / AHD Video To Fiber Converter With Intelligent Transportation System





Payment



video digital optical converter CVI / TVI / AHD Video To Fiber Converter With Intelligent Transportation System



Our Services



Welcome to inquire!



video digital optical converter CVI / TVI / AHD Video To Fiber Converter With Intelligent Transportation System
