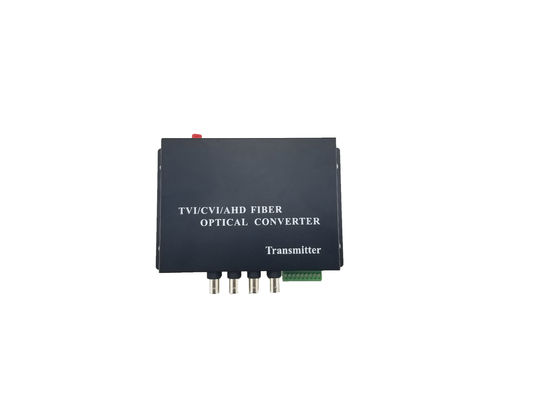

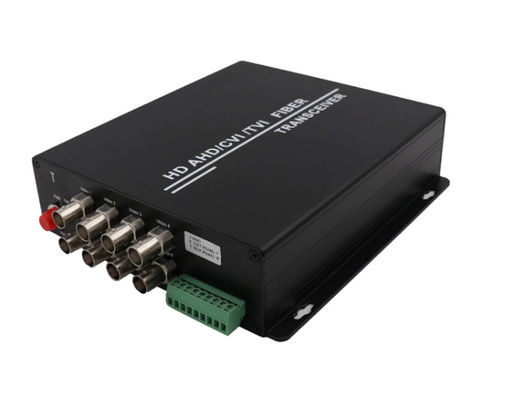

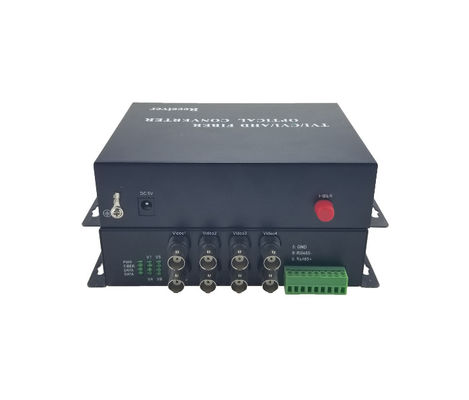

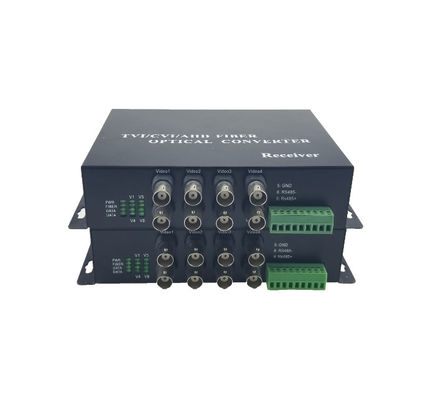

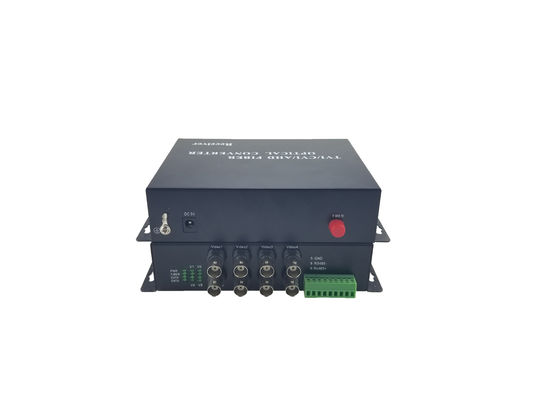

AHD/CVI/TVI Converter 720P/1080P 8channels Fiber Video Converter,Support 720p 1080P,Non-compression coding technology

Certification
Good quality HD SDI Video to Fiber Converter for sales
Good quality HD SDI Video to Fiber Converter for sales
Our main concern before ordering products was the longevity and quality. product works good. We will consider more of your products in my projects.

—— Ilan

works great easy to use, I recommend seller

—— paul rusnock

inexpensive product, fast delivery, and does its job.Very good service fast shipping.Thank You

—— Cal T.

I'm Online Chat Now

AHD/CVI/TVI Converter 720P/1080P 8channels Fiber Video Converter,Support 720p 1080P,Non-compression coding technology

China AHD/CVI/TVI Converter 720P/1080P 8channels  Fiber Video Converter,Support 720p 1080P,Non-compression coding technology supplier
AHD/CVI/TVI Converter 720P/1080P 8channels  Fiber Video Converter,Support 720p 1080P,Non-compression coding technology supplier AHD/CVI/TVI Converter 720P/1080P 8channels  Fiber Video Converter,Support 720p 1080P,Non-compression coding technology supplier AHD/CVI/TVI Converter 720P/1080P 8channels  Fiber Video Converter,Support 720p 1080P,Non-compression coding technology supplier AHD/CVI/TVI Converter 720P/1080P 8channels  Fiber Video Converter,Support 720p 1080P,Non-compression coding technology supplier AHD/CVI/TVI Converter 720P/1080P 8channels  Fiber Video Converter,Support 720p 1080P,Non-compression coding technology supplier

Large Image :  AHD/CVI/TVI Converter 720P/1080P 8channels Fiber Video Converter,Support 720p 1080P,Non-compression coding technology

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: HL-2V1D-20T/R-1080

Payment & Shipping Terms:

Minimum Order Quantity: 1pair
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pairs per month
Contact Now
Detailed Product Description
Fiber Connector: FC Or ST Or SC Distance: 10km~80km (Optional)
Input Level: >500mVp-p Self-adaption Cable Equilibrium: 1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m
Input/Output Impedance: 75 Ω Physical Interface: BNC Connector
Wavelength: Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm EPS: DC5V
Certification: CE/RoHS/ISO9001:2008

AHD/CVI/TVI Converter 720P/1080P 8CH Fiber Video Converter,Fiber Optical Video Transmitter/Receiver





Product Description


    HDTVI optical transceiver is designed by Beyond for long-distance fiber transmission of HDCVI HD compound video, adopt the compressed digital photoelectric conversion technology by their research and development, use fiber to transfer Millions of pixel HD video by dot to dot, and realize video transmission without delay and with high reliability. Single fiber can transfer 1-2 CH HDCVI HD compound video at the same time.






Key features

  • 2 video channels
  • 1 data channel
  • Cooperation with HD-TVI cameras (720p and 1080p) and PAL cameras
  • Maximum transmission distance: 20 km
  • Transmission via one single-mode fiber (WDM)
  • LED indicators showing operating status
  • The set contains video transmitter and video receiver, and 2 power supplies
  • Very easy installation
  • 19" RACK mount option



Specifications:


Name HDTVI
Brand Ho-Link
Number of video channels 2
Fiber type SM (single-mode)
Range 20 km
Wavelengths Video transmitter: 1310(T)/1550(R)
Video receiver: 1550(T)/1310(R)
Optical connectors FC/PC
Video connectors BNC
Video signal 1 Vp-p, 75 Ω
SNR > 70 dB
Power 230 VAC
Power consumption <7 W (per unit)
Operating temperature range -10oC ... 75oC
Operating humidity (RH) 10% ... 90% (without condensation)
Dimensions of the main units 190x168x45 mm
Weight (set) 3 kg


    video converters are widely used for the transmission of CCTV signals over long distances and in areas exposed to harsh weather conditions. Optical fibers provide full electrical insulation and resistance to electromagnetic interference. Below there is a sample application of converters.

AHD/CVI/TVI Converter 720P/1080P 8channels  Fiber Video Converter,Support 720p 1080P,Non-compression coding technology







Product Display



AHD/CVI/TVI Converter 720P/1080P 8channels  Fiber Video Converter,Support 720p 1080P,Non-compression coding technology







Certificates

Fiber optic video transmitter & receiver stand-alone AHD converter







Shipping

Fiber optic video transmitter & receiver stand-alone AHD converter


  1. Packaging : bags&caron box
  2. Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
  3. FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
  4. DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.

AHD/CVI/TVI Converter 720P/1080P 8channels  Fiber Video Converter,Support 720p 1080P,Non-compression coding technology





Company Profile





    Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.

   Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore, Malaysia,Vietnam and India.

Welcome to source high quality products at competitive prices from us.
