|Number Of Channels:||16||Transmission Distance:||0-60km|
|Power:||DC 5V2A Or AC220V||Video Bandwidth:||45MHz|
|Input Level:||>500mVp-p||Resolution:||1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m|
|Input/Output Impedance:||75 Ω||Operation Temperature:||40°C~75°C|

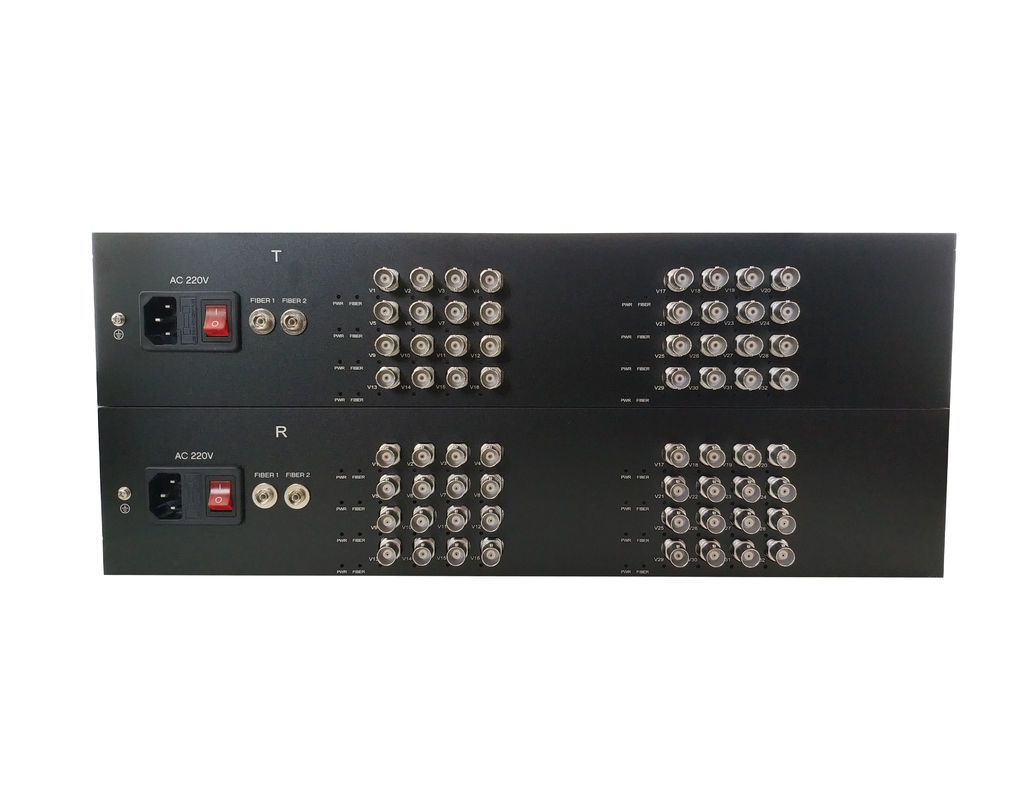

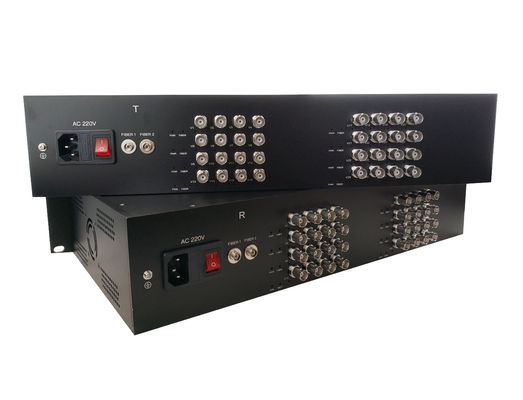

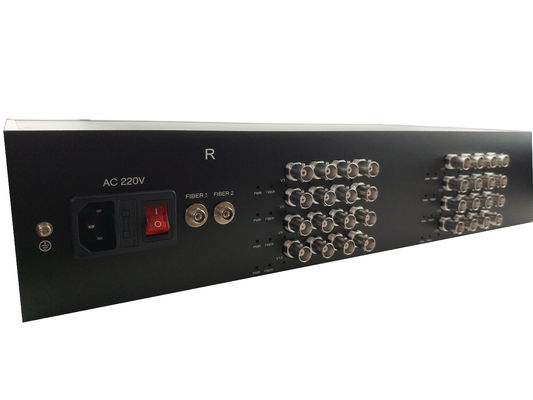

16channels HDCVI digital Video BNC to fiber optic converter with RS485 Data
AHD/CVI/TVI Optical Transceiver adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the AHD or HDCVI composite signals to optical signals to achieve long distance(as far as 120Km) transmission through fibers. AHD/CVI/TVI Fiber optic transceiver can simultaneously transmit 1-16 channels AHD/TVI or HDCVI over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. It supports input video format as 25/30/50/60fps@720P & 25/30fps@1080P.
1. Automatically identify formats of input videos.
2. Support 1~8ch HD-CVI/TVI/AHD signal and controlling data simultaneously through coaxial cable reach to 20km.
3. With 1-CH reverse RS485 data or without data for optional.
4. DC 5V power supply.
5. Support 720p, 960p, 1080p video etc.
6. Through LED indicators to inform its functional mode.
7. Industrial wide range of operational temperature.
8. Plug and play, simple installation.
|Data||Connector: Terminal Blocks
Encoded type: RS485 / RS422 / RS232 / Manchester
Data rate: DC ~ 300Kbps
|Audio||Connector: Terminal Blocks
Audio input / output impedance: 600Ω(Balance/ unbalance)
Audio input / output voltage: 2Vp-p ( typical value)
Audio input / output level: 0dBm ( typical value)
Video bandwidth: 20HZ~20KHZ
Audio digital encoded bandwidth: 24bit
Audio signal-to-noise ratio: S/N≥85dB
Features: Support call-showing function ;support H-F
Operating mode: Point to point hot-line mode / FXS-FXO
Support mode: Half duplex or Full duplex
Data rate: 10M / 100Mbps
|Contact Closure||Physical connector: Industrial standard connector port
Alarm output: Support any type of active or passive alarm output
Data Interface: Support TTL, RS232/485/422 or relay output
|Optical Budget||Multi-mode / 20dBm / 2KM
Single mode / 20dBm / 20KM
Single mode / 22dBm / 40KM
Single mode / 25dBm / 60KM
Holink HDCVI Video Over Fiber Converter adopt the advanced uncompressed
HD composite video and high velocity digital optical transmission technologies which convert the HDCVI composite signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.
HDCVI TO Fiber Converter System connection diagram:
