4 ch HD-TVI HD-CVI over Fiber Optical converter 1080P hd audio converter for CCTV system

China 4 ch HD-TVI HD-CVI over Fiber Optical converter 1080P   hd audio converter for CCTV system supplier
4 ch HD-TVI HD-CVI over Fiber Optical converter 1080P   hd audio converter for CCTV system supplier 4 ch HD-TVI HD-CVI over Fiber Optical converter 1080P   hd audio converter for CCTV system supplier

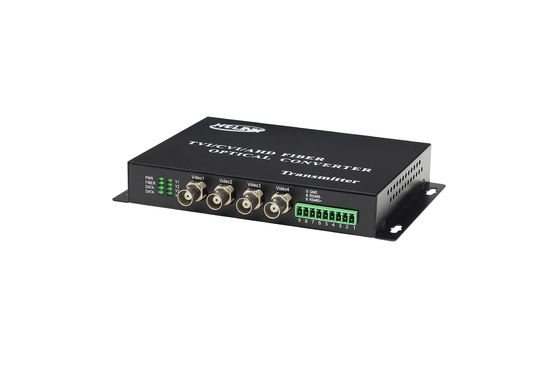

Large Image :  4 ch HD-TVI HD-CVI over Fiber Optical converter 1080P hd audio converter for CCTV system

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-CVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Model Number: H-CVI-2V-T/RF Optical Connector: FC/SC/ST
Fiber Type: SMF Physical Interface: BNC
Warranty: 3 Years Certification: CE/FCC/RoHs Compliant
Color: Black(Optional)

4 ch HD-TVI HD-CVI ahd Video coaxial over Fiber Optical converter 1080P







Introduction



HD CVI /AHD /TVI video converter is designed for long-distance optical fiber transmission.

It adopt the advanced uncompressed HD composite video and high velocity digital optical

transmission technologies which convert the high definition signals to optical signals.



HD CVI /AHD /TVI video converter can simultaneously transmit 1/2/4/8/16 CH composite video.

Feature is real-time, synchronous, lossless, high reliability, coaxial point to point transmission.

The play-and-plug design makes the installation more convenient and easier for our customer.

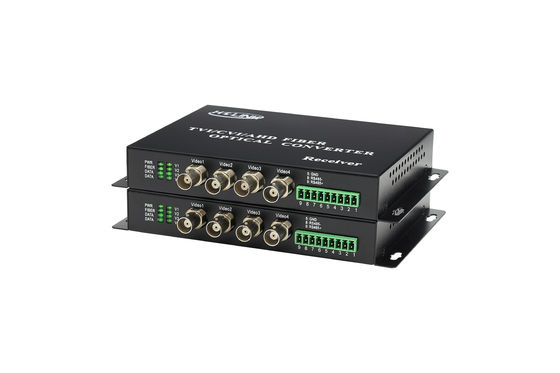

4 ch HD-TVI HD-CVI over Fiber Optical converter 1080P   hd audio converter for CCTV system





Applications:

  1. Transmitter + Receiver
  2. Fiber Mode: Single-Mode
  3. Wavelengths: 1310nm/1550nm
  4. Optical Power Budget: 12dB
  5. Maximum Transmission Distance: 20km
  6. Standalone- (Insert card version also available ,which can be inserted into our 16-slot, 19inch 2U or 4U rack-mountable card cage).
  7. Standard Single-Mode 20KM- (Multimode also available, which support for distances up to 2.0 km)





Key Features:

  1. Support Point-to-Point or Daisy-Chain connection
  2. Uncompressed Digital Composite Video over one fiber
  3. Compatible with all PAL, NTSC,SECAM Video Systems
  4. Data support RS485(2-wire or 4-wire),RS232,RS422, Contact Closure
  5. Single-Mode Fiber Support for Distances up to 100 km
  6. LED Status Provide Rapid Indication of Operating Parameters
  7. No EMI or RFI and no ground loops
  8. Support Coarse Wavelength Division Multiplexing (CWDM)
  9. Stand alone
  10. Produce according to customer's specifications,providing OEM







Technical Indexes:





Video Connectors
Number of Channels 1 channel to 64CH Video Video 75Ω BNC (Gold Center Pin)
Input/output impedance BNC 75Ω Data 3 Pin Terminal Block
Input/output Compatibility PAL,NTSC,SECAM Audio Terminal Block
Input/output voltage 1.0 Volt p-p Optical FC (Standard)
Bandwidth 6.5MHZ Standalone power Screw terminal block
Bit Resolution 8-Bit Digital Transmission Rack Power AC line card
Differential Gain < 1.5% Electrical & Mechanical
Differential Phase < 1.5° Input Power Requirements DC 5V@2A
Tilt < 5% Power Adapter AC 100V~240V
Signal-to-Noise Ratio(SNR) > 67 dB Power Consumption < 3W
  Shipping weight 2kg(include TX & RX)
Data
Data Formats RS485(2-wire or 4-wire), RS232/422,Contact Closure
Data Rate DC to 115.2Kbps
Bit Error Rate 10E-9
Audio
Number of Channels 1 channel forward audio
Audio in/output impedance 600Ω Balanced/Unbalanced
Audio in/output Level 6 dBm
Signal-to-Noise Ratio (SNR) >80 dB
Bit Resolution 24-Bit
Bandwidth 10Hz~20KHz
Environmental
Operating Temperature -45°C~+75 °C Storage Temperature -45°C~+85 °C
Relative Humidity 0%~95% (non-condensing) MTBF >100,000 hours






Ordering Information
Model Description(FC,SM,20KM)
H-H1VF-T/R 1ch HD-CVI/TVI/AHD video 720P
H-H1V1DF-T/R 1ch HD-CVI/TVI/AHD video 720P + 1ch Reverse RS485 Data
H-H2VF-T/R 2ch HD-CVI/TVI/AHD video 720P
H-H2V1DF-T/R 2ch HD-CVI/TVI/AHD video 720P + 1ch Reverse RS485 Data
H-H4VF-T/R 4ch HD-CVI/TVI/AHD video 720P
H-H4V1DF-T/R 4ch HD-CVI/TVI/AHD video 720P + 1ch Reverse RS485 Data
H-H8VF-T/R 8ch HD-CVI/TVI/AHD video 720P
H-H8V1DF-T/R 8ch HD-CVI/TVI/AHD video 720P + 1ch Reverse RS485 Data
H-H16VF-T/R 16ch HD-CVI/TVI/AHD video 720P
H-H16V1DF-T/R 16ch HD-CVI/TVI/AHD video 720P + 1ch Reverse RS485 Data
H-HD1VF-T/R 1ch HD-CVI/TVI/AHD video 1080P
H-HD1V1DF-T/R 1ch HD-CVI/TVI/AHD video 1080P + 1ch Reverse RS485 Data
H-HD2VF-T/R 2ch HD-CVI/TVI/AHD video 1080P
H-HD2V1DF-T/R 2ch HD-CVI/TVI/AHD video 1080P + 1ch Reverse RS485 Data
H-HD4VF-T/R 4ch HD-CVI/TVI/AHD video 1080P
H-HD4V1DF-T/R 4ch HD-CVI/TVI/AHD video 1080P + 1ch Reverse RS485 Data
H-HD8VF-T/R 8ch HD-CVI/TVI/AHD video 1080P
H-HD8V1DF-T/R 8ch HD-CVI/TVI/AHD video 1080P + 1ch Reverse RS485 Data
H-HD16VF-T/R 16ch HD-CVI/TVI/AHD video 1080P
H-HD16V1DF-T/R 16ch HD-CVI/TVI/AHD video 1080P + 1ch Reverse RS485 Data




AHD CVI 4Ch Video/Data/ Audio to Fiber SM 20km optical video multiplexer1CH to 64CH cctv fiber video converter factory



4 ch HD-TVI HD-CVI over Fiber Optical converter 1080P   hd audio converter for CCTV system



Packaging & Shipping



1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed

4 ch HD-TVI HD-CVI over Fiber Optical converter 1080P   hd audio converter for CCTV system





Payment



4 ch HD-TVI HD-CVI over Fiber Optical converter 1080P   hd audio converter for CCTV system



Our Services



Welcome to inquire!



4 ch HD-TVI HD-CVI over Fiber Optical converter 1080P   hd audio converter for CCTV system
