DC ~ 300Kbps Data rate HD 1080p Video Converter 24bit digital audio multiplexer

China DC ~ 300Kbps Data rate HD 1080p Video Converter 24bit digital audio multiplexer supplier
DC ~ 300Kbps Data rate HD 1080p Video Converter 24bit digital audio multiplexer supplier DC ~ 300Kbps Data rate HD 1080p Video Converter 24bit digital audio multiplexer supplier DC ~ 300Kbps Data rate HD 1080p Video Converter 24bit digital audio multiplexer supplier DC ~ 300Kbps Data rate HD 1080p Video Converter 24bit digital audio multiplexer supplier DC ~ 300Kbps Data rate HD 1080p Video Converter 24bit digital audio multiplexer supplier

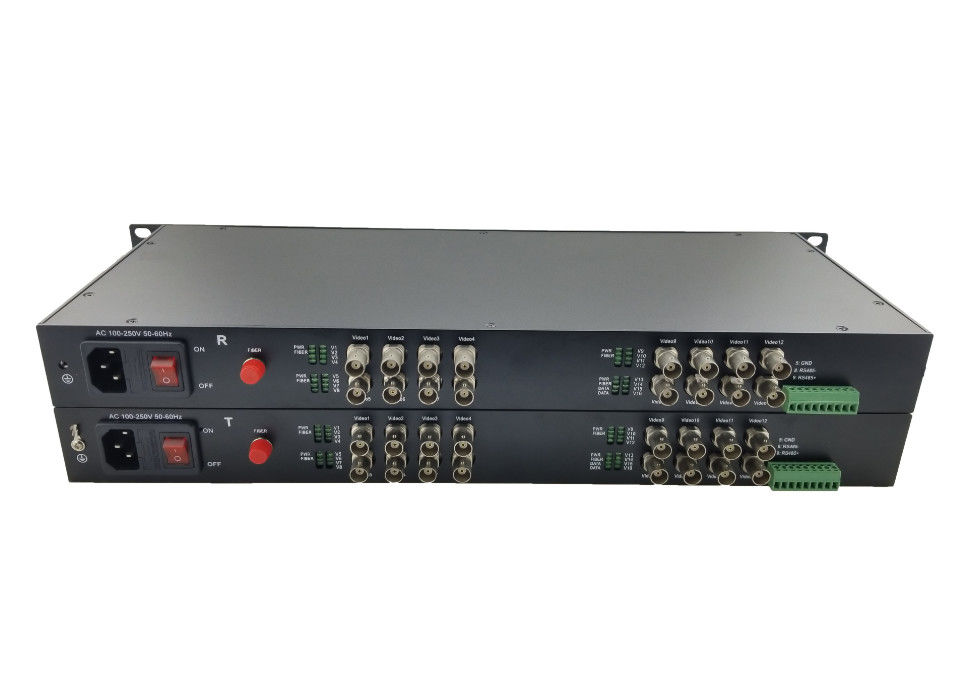

Large Image :  DC ~ 300Kbps Data rate HD 1080p Video Converter 24bit digital audio multiplexer

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-CVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Number Of Channels: 16 Fiber Type: Multi-mode Fiber Or Single Mode Fiber
Fiber Connector: FC Or ST Or SC Distance: 10km~80km (Optional)
Power: 220VAC Or -48VDC Connector: FC (ST, SC Optional),BNC
Input/Output Impedance: 75 Ω Wavelength: Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm

16 channels high definition CCTV video converters fiber video converter Ethernet Video Over Fiber with RS485 RS422 DATA





Description
series provides the ability to transmit 16 channel uncompressed video and 1 channel date(RS-485) over one optic fiber. NTSC, PAL and SECAM video formats are all seamlessly supported. Modular in design, stand-alone or rack-mounted installation is available. In addition, Hexin provides the solution for allowing PTZ camera control data to be transmitted the full distance of the fiber. Available in multimode and single-mode versions, including one transmitter and receiver.

They are suitable to the purpose of monitor and surveillance in expressways, the customs, transportation, electronic police, industrial automation, power service, banks, and water conservation projects, etc...
Feature
  • 8/10 bits digitally encoded video transmission of high quality over a single fiber
  • Compatible with NTSC, PAL, and SECAM Video Standards, auto compatible
  • Surface mount technology
  • Integrated Wavelength Division Multiplexing (WDM) in a Single Fiber
  • Multimode Fiber Support for Distances up to 3km(single-mode 20KM is recommended)
  • Single-Mode Fiber Support for Distances up to 20-120 km(single-mode 20KM is recommended)
  • LED indicators for monitoring of system operating status
  • Immune to EMI, RFI, cross talk and video distoration
  • Surge protection against transient surge and over voltage
  • Automatic re-settable fuses, short circuit protection
  • ST,FC,SC Optical Connectors
  • No user adjustments required
  • Laser Diode for Transmission of Optical Signals
Application
  • Smart Buildings
  • Intelligent Transportation System
  • Security and Surveillance, CCTV System
  • Access Contral
  • Connection of Sub-network for Surveillance Center
  • High Way & Toll Station Surveillance
  • High Quality Video Conference
  • Industrial Closed Circuit Television Surveillance
Payment
  • T/T (Bank Transfer)
  • Paypal for samples(support credit card)
  • Western Union
  • Moneygram
Shipping
  • Prompt delivery by FedEx, DHL, UPS, TNT, EMS, or by Air
  • To the Middle East, SOUTH AFRICA and some Africa country , normally we ship by ARAMEX
  • For the sample, customer can choose the post if it is not urgent, we can ship by Hongkong Post, China Post, USPS(to US), Royalmail(to UK)
Warranty & Return Policy
  • 3 Years  Warranty!











 Specifications


Data Connector: Terminal Blocks
Encoded type: RS485 / RS422 / RS232 / Manchester
Data rate: DC ~ 300Kbps
BER: ≤10-9
Audio Connector: Terminal Blocks
Audio input / output impedance: 600Ω(Balance/ unbalance)
Audio input / output voltage: 2Vp-p ( typical value)
Audio input / output level: 0dBm ( typical value)
Video bandwidth: 20HZ~20KHZ
Audio digital encoded bandwidth: 24bit
Audio signal-to-noise ratio: S/N≥85dB
Telephone Connector: RJ11
Bandwidth: 8KHZ
Features: Support call-showing function ;support H-F
Operating mode: Point to point hot-line mode / FXS-FXO
Ethernet Connector: RJ45
Support mode: Half duplex or Full duplex
Standards: IEEE802.3
Data rate: 10M / 100Mbps
Bandwidth: 25M
Contact Closure Physical connector: Industrial standard connector port
Alarm output: Support any type of active or passive alarm output
Data Interface: Support TTL, RS232/485/422 or relay output
Optical Budget Multi-mode / 20dBm / 2KM
Single mode / 20dBm / 20KM
Single mode / 22dBm / 40KM
Single mode / 25dBm / 60KM

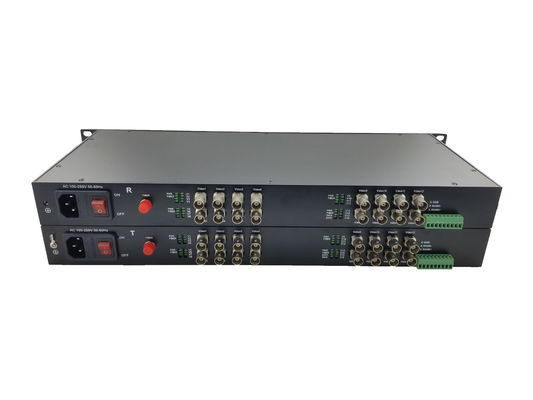

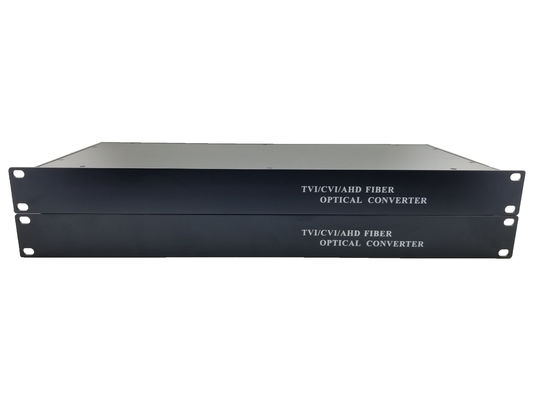

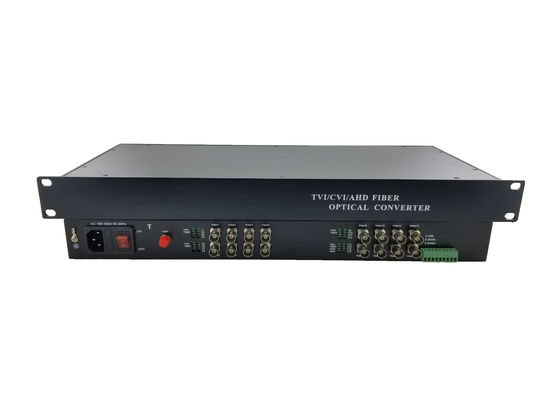

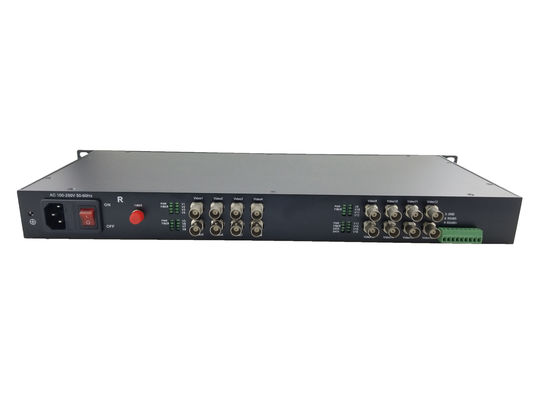

Product Display
DC ~ 300Kbps Data rate HD 1080p Video Converter 24bit digital audio multiplexer

Competitive Advantage:
Holink HDCVI Video Over Fiber Converter adopt the advanced uncompressed
HD composite video and high velocity digital optical transmission technologies which convert the HDCVI composite signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.

Company Photo

DC ~ 300Kbps Data rate HD 1080p Video Converter 24bit digital audio multiplexer

HDCVI TO Fiber Converter System connection diagram

DC ~ 300Kbps Data rate HD 1080p Video Converter 24bit digital audio multiplexer
