4ch video + 1 return data fiber optic video converter , 1 ~ 64 channels bnc to fiber converter

China 4ch  video + 1 return data fiber optic video converter , 1 ~ 64 channels bnc to fiber converter supplier
4ch  video + 1 return data fiber optic video converter , 1 ~ 64 channels bnc to fiber converter supplier 4ch  video + 1 return data fiber optic video converter , 1 ~ 64 channels bnc to fiber converter supplier 4ch  video + 1 return data fiber optic video converter , 1 ~ 64 channels bnc to fiber converter supplier 4ch  video + 1 return data fiber optic video converter , 1 ~ 64 channels bnc to fiber converter supplier

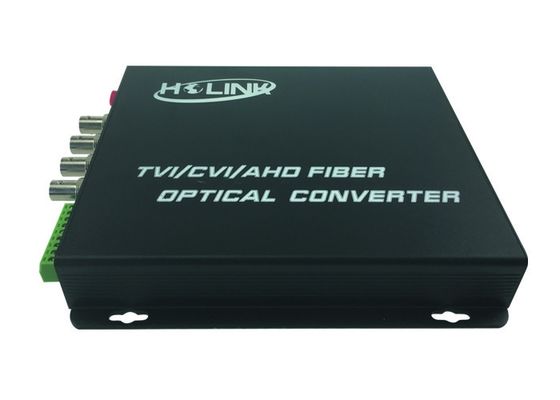

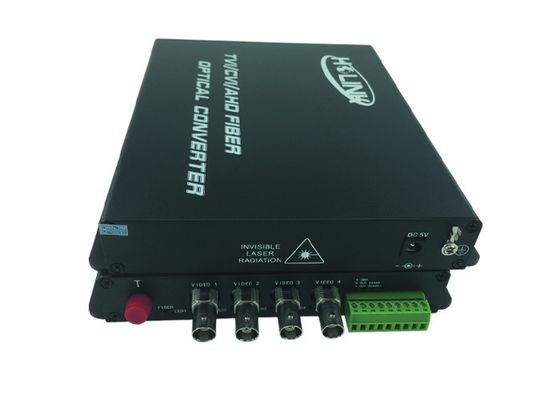

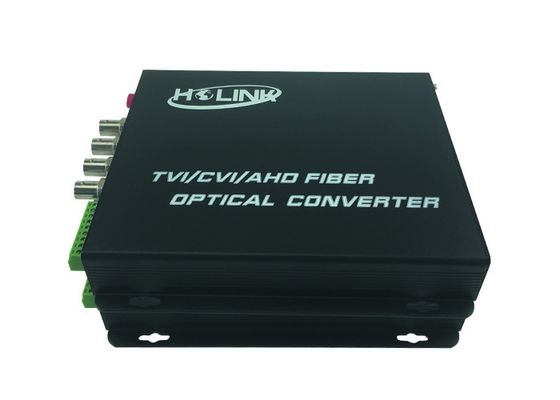

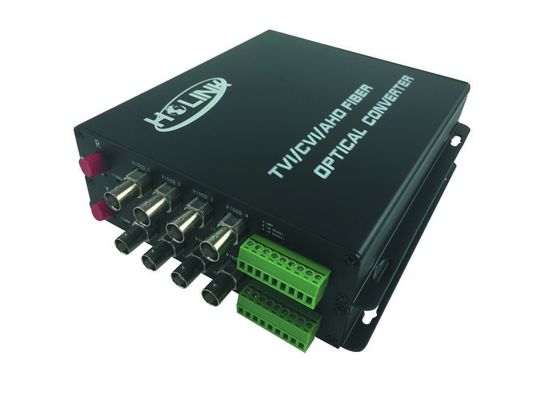

Large Image :  4ch video + 1 return data fiber optic video converter , 1 ~ 64 channels bnc to fiber converter

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-CVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Material: Aluminum Application: HD Monitor
Distance: 10km~80km (Optional) Input Level: >500mVp-p
Self-adaption Cable Equilibrium: 1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m Wavelength: Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm

4ch video+1 return data Fiber Optical Video Converter/ Digital video fiber optical converter/bnc to fiber converter





Product overview:

Our 4 channel video multiplexers can simultaneously transmit 16 channels of 8-bit digitally encoded broadcast quality video / return or bidirectional data / unidirectional or bidirectional audio / Ethernet / Telephone / Switching value over one multimode or singlemode optical fiber. These multiplexers are typically used in applications where the cameras have P/T/Z capabilities. Plug and Play design ensures the ease of installation and operation. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation ,which is suitable for different working environment .



Product characteristics:

1. 10-bit diditally encoded and non-compressionbroadcast quality video transmission

2. Directly compatible with NTSC, PAL, and SECAM CCTV camera systems and support RS-232, RS-422, and RS-485 data protocols

3. Support any high-resolution video signal

4. Automatic compatible PAL, NTSC and SECAM video system

5. Power supply and other parameter state indication, which can monitor the operation condition of system

6. Support no-damage regenerative trunk of video

7. Constant input optical power, and large dynamic range ,no Electrical or Optical Adjustments Required .

8. Special ASIC design

9. Industry-grade of operating temperature from -40 to 85 , which is applied to the different working environment

10. Hot-swap function

11. We can offer rack-mounted chassis in standard 1U/2U/2.5U/4U





Aplication:



1. Intelligent Transportation System
2. Connection of Sub-network for Surveillance Center
3. Public Security Surveillance
4. High Way & Toll Station Surveillance
5. High Quality Video Conference
6. Industrial Closed Circuit Television Surveillance



7.Coliseum using for TV-live ,audio transmission



Specifications:

Feature Description
Optical Fiber Type Multi-mode fiber or Single mode fiber
Fiber Connector FC or ST or SC
Distance 0km~80km (Optional)
Wavelength

Transmitter

T1310nm, R1550nm.

Receiver

T1550nm,R1310nm.

HDCVI(Transmitting) Input level >500mVp-p
self-adaption cable equilibrium

1080p:75-5

coaxial cable,300m

720p:75-5 coaxial cable,500m

Input/Output Impedance 75 Ω
Physical Interface 16 channels BNC connector
HDCVI(Receiving) Output level 1Vp-p
Input/Output Impedance 75Ω
Physical Interface 1~64 channels BNC connector
Data Transmission Media Coaxial cable
Baud Rate 1200~9600bit/s
Bit Error Rate ≦10
Operation Mode Half-Duplex
Indicators LOS,PWR,DATA,VIDEO
Mean time between failures(MTBF)



>100 000 hours

General EPS DC5V
Power Consumption ≦5W
Operation Temperature —40℃~75℃
Operation Humidity 10%~90%
Atmospheric Pressure 86kpa~106kpa
Mounting Method Wall mounted



Description:

Ø Non-compression coding technology

Ø Automatically identify formats of input videos

Ø Support transmission of 1 channels AHD signal and controlling data simultaneously though coaxial cable

Ø DC 5V power supply

Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc

Ø Through LED indicators to inform its functional mode

Ø Industrial wide range of operational temperature

Ø Plug and play, simple installation



Applications:

  • City traffic monitoring system
  • Public security, safe city monitoring system
  • Highway security protection, charging system
  • Building, campus monitoring net
  • Industrial monitoring (airport, chemical industrial, steel, oil, railway, water conservancy, mine, etc)
  • Military monitoring (storehouse, frontier defense, guard, nation defense, etc)
  • electric power, oilfield, television program transmission system
  • Gymnasium (live video, audio transmission)







Competitive Advantage:

Holink HDCVI Video Over Fiber Converter adopt the advanced uncompressed

HD composite video and high velocity digital optical transmission technologies which convert the HDCVI composite signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.
