Full HD CCTV systems TVI converter optical digital audio receiver 0 ~ 550M Distance

China Full HD CCTV systems TVI converter optical digital audio receiver 0 ~ 550M Distance supplier
Full HD CCTV systems TVI converter optical digital audio receiver 0 ~ 550M Distance supplier Full HD CCTV systems TVI converter optical digital audio receiver 0 ~ 550M Distance supplier Full HD CCTV systems TVI converter optical digital audio receiver 0 ~ 550M Distance supplier Full HD CCTV systems TVI converter optical digital audio receiver 0 ~ 550M Distance supplier Full HD CCTV systems TVI converter optical digital audio receiver 0 ~ 550M Distance supplier

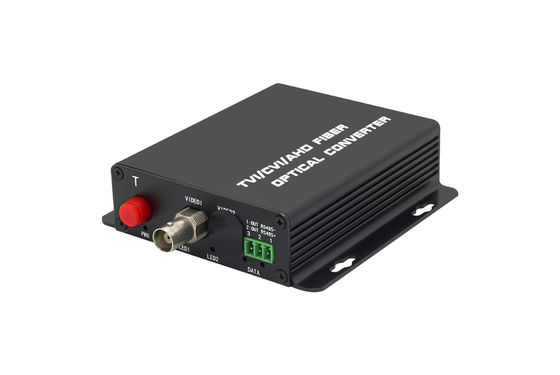

Large Image :  Full HD CCTV systems TVI converter optical digital audio receiver 0 ~ 550M Distance

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-TVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Number Of Channels: 8 Fiber Type: Single Mode Fiber
Fiber Connector: FC Or ST Or SC Distance: 10km~80km (Optional)
Input Level: >500mVp-p Self-adaption Cable Equilibrium: 1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m
Input/Output Impedance: 75 Ω Physical Interface: 1 Channels BNC Connector
Wavelength: Transmitter:T1310nm, R1550nm Receiver:T1550nm,R1310nm EPS: DC5V

cctv security 720p 8-channel ahd fiber video converter ahd video converter for HD TVI camera HIKVISION HD CCTV 8Ch







Introduction



AHD TO Fiber Converter can simultaneously transmit 1-8 channels AHD over one multimode or single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment . Compatible with AHD-H,AHD-M,AHD-L. Lossless non-compression real time transmission.

Full HD CCTV systems TVI converter optical digital audio receiver 0 ~ 550M Distance




Key features



1. Automatically identify formats of input videos.

2. Support 8ch HD-VIsignal and controlling data simultaneously through coaxial cable reach to 20km.

3. With 1-CH reverse RS485 data or without data for optional.

4. DC 5V power supply.

5. Support 720p, 960p, 1080p video etc.

6. Through LED indicators to inform its functional mode.

7. Industrial wide range of operational temperature.

8. Plug and play, simple installation.






Product parameters

8 channel HD CVI/AHD/TVI 720p 960p 1080p bnc to fiber coaxial video converter









Technical Specification



Opitcal:



Wavelength 1310nm&1550nm
Output Power -8~3dBm
Optic fiber 50/125u multimode,62.5/125u multimode,9/125u single mode
Rx sensitivity -25dBm
Optical connector FC,ST,SC (optional)
Distance 0~550M (MM) / 0~20KM (SM)



Video:



Number of Channels 8
Input/output impedance BNC 75Ω (unbalance)
Standard video input/output voltage 1.0Vp-p
Video Bandwidth 45MHz
Sampling Bandwidth 10bit
Sampling Frequency 108MHz
Rise and Fall time <0.8ns
Optical Signal Intrinsic Jitter <0.2 UI
Differential Gain < ±1.5%
Differential Phase < ±1°
Connector BNC



Other



Power DC5V 2A
Power Consumption ≤6W
Temperature -40ºC ~75ºC
Humidity 10%~90% RH
Unit Weight 1/2ch:1.1kg,4ch:1.8KG,8ch:2.15KG(pair)
Dimension

1/2ch:108mm×106mm×27mm

4ch:173mm×173mm×30mm

8ch:173mm×167mm×45mm

Installation Wall mount
MTBF ≥ 100000Hours











Certificates

Fiber optic video transmitter & receiver stand-alone AHD converter





Shipping

Fiber optic video transmitter & receiver stand-alone AHD converter


  1. Packaging : bags&caron box
  2. Shipping: International Express: Fedex, DHL, UPS, TNT and EMS.If you have another preferred carrier, please notify us in advance.
  3. FedEx Overnight: It will take 1-3 business days (weekends and holidays excepted) for delivery.
  4. DHL: It will take 2-4 business days (weekends and holidays excepted) for delivery. For Spain, Italy, Brazil and some other countries, items will take longer time to arrive due to customs clearance period.









HDTVI TO Fiber Converter System connection diagram
