4-Ch 3G-SDI 1080P Video + 1-Ch Forward Audio Single Mode FC 4 Channel 3G-SDI Fiber Converter

China 4-Ch 3G-SDI 1080P Video + 1-Ch Forward Audio Single Mode FC 4 Channel 3G-SDI Fiber Converter supplier
4-Ch 3G-SDI 1080P Video + 1-Ch Forward Audio Single Mode FC 4 Channel 3G-SDI Fiber Converter supplier 4-Ch 3G-SDI 1080P Video + 1-Ch Forward Audio Single Mode FC 4 Channel 3G-SDI Fiber Converter supplier 4-Ch 3G-SDI 1080P Video + 1-Ch Forward Audio Single Mode FC 4 Channel 3G-SDI Fiber Converter supplier 4-Ch 3G-SDI 1080P Video + 1-Ch Forward Audio Single Mode FC 4 Channel 3G-SDI Fiber Converter supplier 4-Ch 3G-SDI 1080P Video + 1-Ch Forward Audio Single Mode FC 4 Channel 3G-SDI Fiber Converter supplier

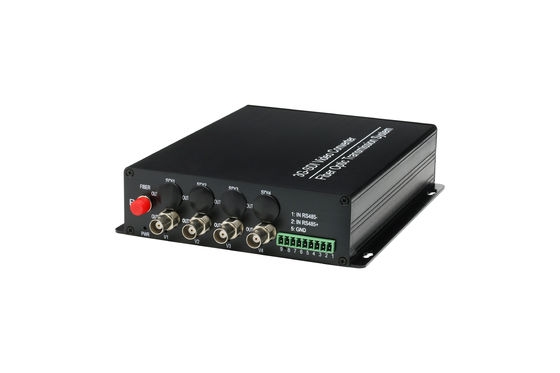

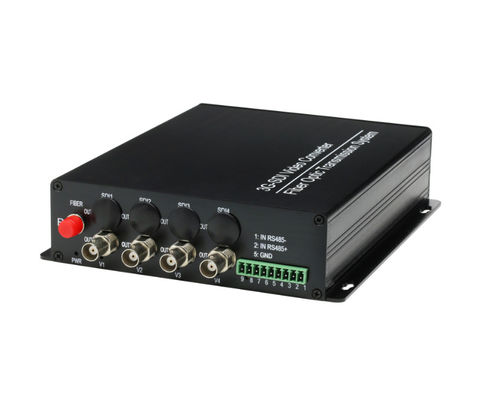

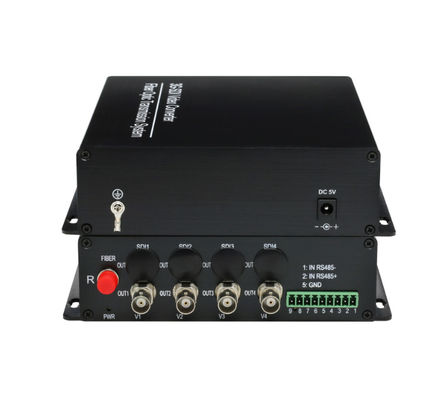

Large Image :  4-Ch 3G-SDI 1080P Video + 1-Ch Forward Audio Single Mode FC 4 Channel 3G-SDI Fiber Converter

Product Details:

Place of Origin: China
Brand Name: Ho-link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-2V-20T/R/3D-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 1 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or Paypal
Supply Ability: 6000pairs per month
Contact Now
Detailed Product Description
Product Name: 3G SDI Video To Fiber Converter Application: 3G SDI Broadcasting System
Support Resolution: 1920X1080@60fps Color: Black Or Customerized
Transfer Distance: 0-20KM Housing: Aluminum Alloy

Multimedia live broadcast system 1080P 2Ch 3G SDI to Fiber Converter for 180mm x 123mm x 30mm







Overview:



       Ho-link 3G/HD-SDI transmitter and receiver is the low cost transfer device for one way SD/HD/3G-SDI video by single mode and multimode optical fiber cable transfer. SD/HD/3G-SDI transmitter and receiver is designed by digital optical transfer technology, transfer long distance one way SD/HD-SDI video signal, one way reverse 485 control signal on one single mode optical fiber.Support SMPTE292M.SMPTE259M.SMPTE424 signal.







Feature:



•1/2/4/8 Channels Video of SD-SDI/HD-SDI/3G-SDI can be transmitted via 1 single fiber



The Max rate of work is 3.2Gb/s



Support SMPTE 292M (2.9Gb/s) clock recovery



• Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI)



• Out wavelength range is 1310nm,1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)



• Automatic cable equalization ,used for all rate below 3.2 Gb/s(Belden 1694A)



LED Status Indication to monitor the working conditions



Video transmission system can support many application branches structure



•The fiber port Support SFP transceiver hot-plugged



The SDI video format support:

625/25 PAL

525/29.97 NTSC

525/23.98 NTSC

720p50,720p59.94

1080P 23.98/24/30/50/60

1080i 23/24/30/50/59.94









Specification:



SDI input/output
Signal format SMPTE 424M,SMPTE 292M, SMPTE 259M
Data rate 270Mbit/s - 2.97Gbit/s
Cable Equalization Automatic cable EQ (Belden 1694A cable)
250m @ 270Mbit/s, 140m @ 1.5Gbit/s
SDI interface BNC 75 Ohm
Fiber interface FC/PC or ST/PC
Number of tranmitter channel 2
Transmitter wavelength CWDM wavelength optional
Transmitter output power -9~-3dBm(0±3dBm optional)
Number of receiver output 2
Receiver sensitivity -18dBm~0 dBm
General index
Input power AC 100~240V
Power consumption Transmitter: 12W Receiver: 12W
Work Temp -20°C to 55°C
Storage Temp -40°C to 85°C
humidity 0 ~ 95% (non-condensing)
Net weight 8000g /pair












4-Ch 3G-SDI 1080P Video + 1-Ch Forward Audio Single Mode FC 4 Channel 3G-SDI Fiber Converter



Application:



« Remote OB Van/Truck Video Feeds



« Broadcast Studio Camera Feeds



« Long-haul Signal Transport



« TV station/video conference



« Lecture Hall Projector Connectivity



« Medical/Surgical Room Broadcast



« Building to Building video conference calling



« Small corporate campus video links
