|Fiber Type:||Single Mode Fiber||Fiber Connector:||FC Or ST Or SC|
|Input Level:||>500mVp-p||Self-adaption Cable Equilibrium:||1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m|
|Input/Output Impedance:||75 Ω||Physical Interface:||BNC Connector|

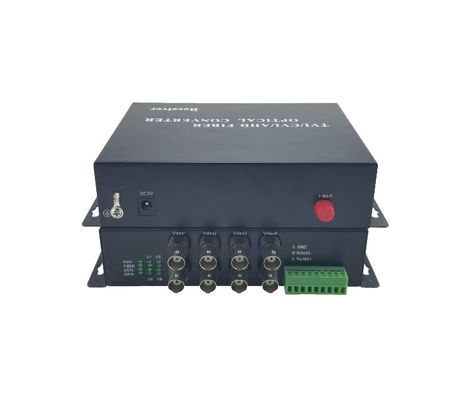

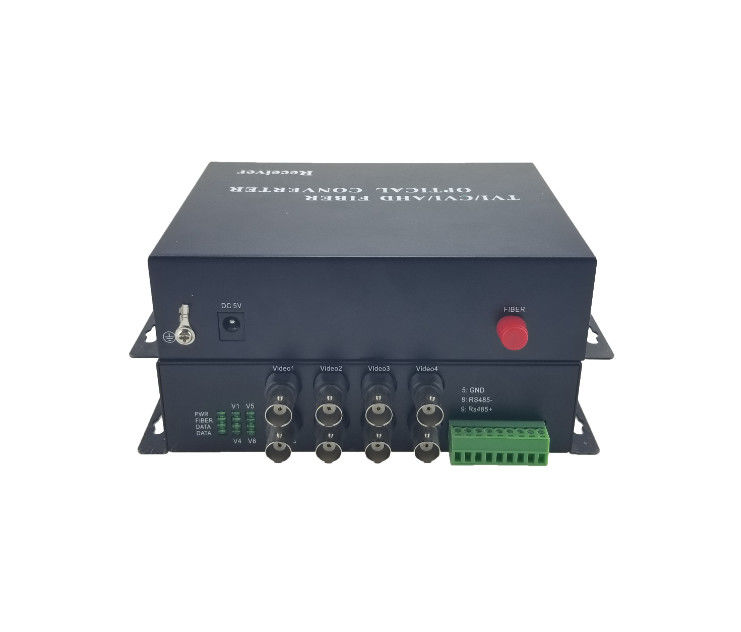

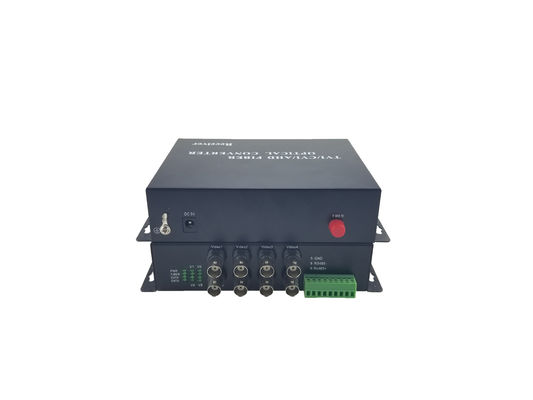

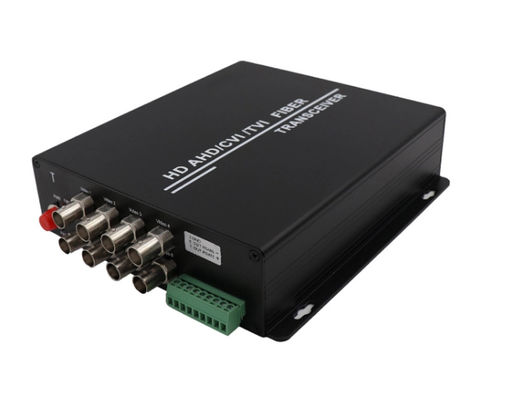

1080P/720P 8 Channels HDTVI Video Over Fiber Converter
HD CVI /AHD /TVI video converter is designed for long-distance optical fiber transmission.
It adopt the advanced uncompressed HD composite video and high velocity digital optical
transmission technologies which convert the high definition signals to optical signals.
HD CVI /AHD /TVI video converter can simultaneously transmit 1/2/4/8/16 CH composite video.
Feature is real-time, synchronous, lossless, high reliability, coaxial point to point transmission.
The play-and-plug design makes the installation more convenient and easier for our customer.
Ø Non-compression coding technology
Ø Automatically identify formats of input videos
Ø Support transmission of 8 channels TVI signal and controlling data simultaneously though coaxial cable
Ø DC 5V power supply
Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc
Ø Through LED indicators to inform its functional mode
Ø Industrial wide range of operational temperature
Ø Plug and play, simple installation
|Optical||Fiber Type||Single mode fiber|
|self-adaptionly cable equilibrium||1080p:75-5|
|720p:75-5 coaxial cable,500m|
|Input/Output Impedance||75 Ω|
|Data||Transmission Media||Coaxial cable|
|Bit Error Rate||≤<10 -7|
|Mean time between failures(MTBF)||
>100 000 hours
|Power Consumption||≤ 5W|
Ho-Link HDTVI Converters adopt the advanced uncompressed HD composite video and
high velocity digital optical transmission technologies which convert the HDTVI composite signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.
HDTVI TO Fiber Converter System connection diagram
