Manufacture rack single core 4 channel VGA 720/1080p video audio extender with data VGA fiber Optic Converter

China Manufacture rack single core 4 channel VGA 720/1080p video audio extender with data VGA fiber Optic Converter supplier
Manufacture rack single core 4 channel VGA 720/1080p video audio extender with data VGA fiber Optic Converter supplier Manufacture rack single core 4 channel VGA 720/1080p video audio extender with data VGA fiber Optic Converter supplier Manufacture rack single core 4 channel VGA 720/1080p video audio extender with data VGA fiber Optic Converter supplier Manufacture rack single core 4 channel VGA 720/1080p video audio extender with data VGA fiber Optic Converter supplier

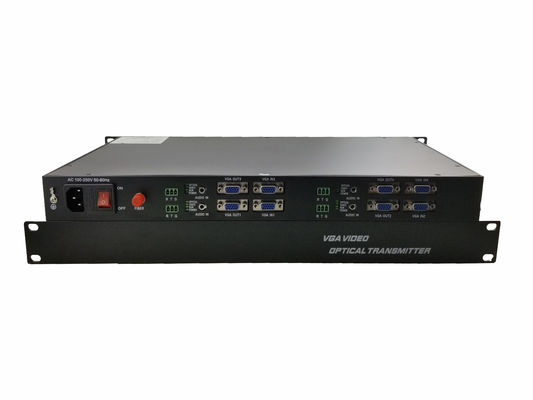

Large Image :  Manufacture rack single core 4 channel VGA 720/1080p video audio extender with data VGA fiber Optic Converter

Product Details:

Place of Origin: China(mainland)
Brand Name: HOLINK/OEM
Certification: CE FCC RoHS
Model Number: H-VGA-1V1D1A-T/RL

Payment & Shipping Terms:

Minimum Order Quantity: 15 Pairs
Price: Negotiation
Packaging Details: International Standard Package
Delivery Time: 1-5 Working Days after Payment Confirm
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 6000Pair one month
Contact Now
Detailed Product Description
Input Signal: 1-ch VGA+AUDIO Brand Name: Holink
Temperature Rage: -40°C To +70°C Connector: SC (FC/ST Option)
Video Resolution: 1080P Signal Level: RS232 Standard Level
Fiber Port: FC Port Audio Frequency: 3.5mm Stereo
Maximum Video Resolution: 1080P/60Hz Transmission Distance: 20Km

VGA uncompressed video transmission+data,Available OEM/ODM,1080P video converter





Overview





     The device includes a sender and a receiver, which can transmit VGA video and Audio signal of PC to a remote location over single/duplex fiber cable, so that user can see the real-time picture image remotely.



     VGA digitally transmits high-resolution RGB (up to WXGA) and stereo audio over one fiber, single-mode, 1310nm wavelength. Point-to-point, point-to-multipoint and drop-and-repeat applications, it supports VGA, SVGA, XGA and WXGA (640 x 480, 1024*768, and 1280*1024, up to 1366 x 768) or RGBHV format.

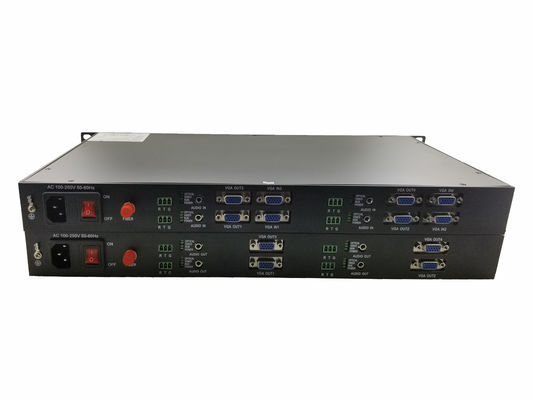

Manufacture rack single core 4 channel VGA 720/1080p video audio extender with data VGA fiber Optic Converter

Features

  • # 1-ch VGA/RGBHV video signal and 1-ch stereo audio over one fiber

    # 1-ch RS232 data, 1-ch switch, with the same direction (optional bidirectional transmission)

    # Sampling clock phase adjustment

    # Image brightness adjustment

    # Image contrast adjustment

    # 10-bit digital video encoded and uncompressed transmission technology

    # The parameters could be saved, and also could be saved after power is turned-off

    # Plug and play at any time, basically no need to be adjusted

    # Automatic identification of input video format, receiver output meets industry-standard video

    # Using DC-DC power conversion technology, could effectively resist environmental interference of power

    # 4U rack mount, 1U rack mount and stand-alone

    # Lower power consumption and free installation, Jitter



Technical Indexes





Video
No. 1-channel
Video type RGB with single and sync H,V
Input level 0.7Vp-p
Output level 0.7Vp-p
Bandwidth (-3 dB) 300MHz
Bit width 10bit
Resolution VGA 640x480 60,70,75,85Hz
SVGA 800x600 60,70,75,85Hz
XGA 1024x768 60,70,75,85Hz
SXGA 1280x1024 60,70,75,85Hz
Interface HD-15(DVI-I option)
Audio
No. of channels 1
Input/ output level 5Vp-p,unequilibrium
Total harmonic distortion ≤1%
Bandwidth (-3 dB) 20~20KHz
Audio coding 24bit
Input/ output impedance 600Ω or 100KΩ
Weighted SNR ≥90 dB
Connector Standard 3.5 mm stereo headphone jack
RS232 indication
Input/output interface 9-hole standard RS232 socket
Signal rate 115200bps
Signal level RS232 standard level
Optics
Wavelength 1310nm
Fiber optic Single-mode
Max. link loss 12dB(option)
Output optical power 10dBm
Receiver sensitivity ≥20dBm
Data rate 1.25
Connector SC (FC/ST option)
Switching indication
Input type 5.08 mm focal length of the Phoenix terminal, switch contact output
Reaction speed Better than0.1 second
Power and environmental indication
Freestanding power 5W
Power adapter 100-240VAC to 5VDC/1A
Temperature rage -40°C to +70°C
Relative humidity < 95% (no condensation)



Application

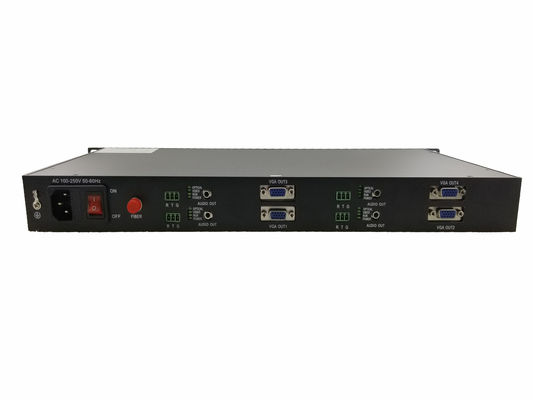

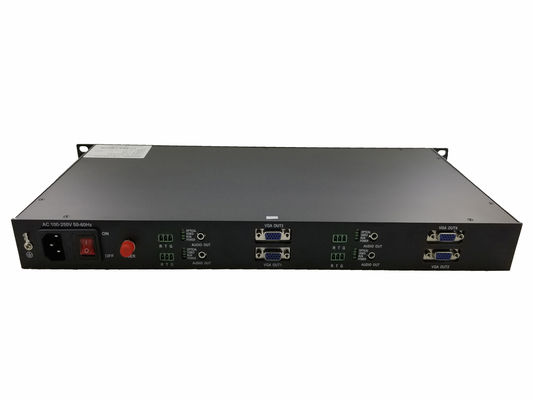

Manufacture rack single core 4 channel VGA 720/1080p video audio extender with data VGA fiber Optic Converter
