1forward video/1 return audio/rs232/KVM with SFP 1080p/60hz fiber optic converter single mode

China 1forward video/1 return audio/rs232/KVM with SFP 1080p/60hz fiber optic converter single mode supplier
1forward video/1 return audio/rs232/KVM with SFP 1080p/60hz fiber optic converter single mode supplier 1forward video/1 return audio/rs232/KVM with SFP 1080p/60hz fiber optic converter single mode supplier 1forward video/1 return audio/rs232/KVM with SFP 1080p/60hz fiber optic converter single mode supplier 1forward video/1 return audio/rs232/KVM with SFP 1080p/60hz fiber optic converter single mode supplier 1forward video/1 return audio/rs232/KVM with SFP 1080p/60hz fiber optic converter single mode supplier

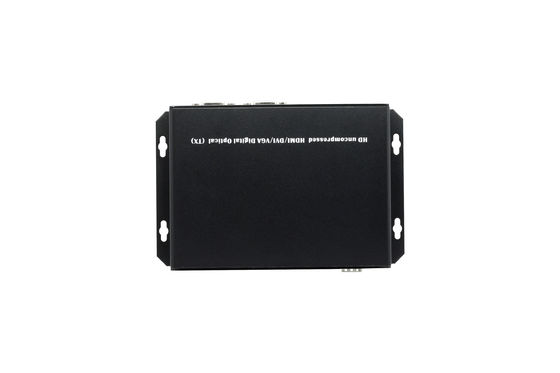

Large Image :  1forward video/1 return audio/rs232/KVM with SFP 1080p/60hz fiber optic converter single mode

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/FCC/ROHS
Model Number: H-VGA-1V1D1A-T/RL

Payment & Shipping Terms:

Minimum Order Quantity: 1pair
Price: Negotiable
Packaging Details: International Standard Package
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 3,000pairs per month
Contact Now
Detailed Product Description
Product Name: VGA Over Fiber Converter Transmission Wavelength: 1310nm/1550nm
Maximum Video Resolution: -5 To +35°C Transmission Distance: 20KM
DC: 5V Power Fiber Interface: LC Connector

Analog video signal bnc coaxial VGA RS422 data BNC to fiber optical converter,1080P







Overview:



   VGA HD VGA Digital Optical is a transmission on a single fiber, Audio signal fiber optic transmission products, mainframe computer audio, VGA interfaces extend through the optical fiber to the distal end, the user can listen to the host computer in real-time images and sound at the distal end . Support VGA high-definition audio and video real-time transmission, a maximum resolution of 1080P / 60HZ, the maximum transmission distance up to 20KM, widely used in military command and control, traffic police traffic management, energy and electricity supply industries, government departments, medical systems, trade shows, multimedia function rooms, public utilities and other fields.

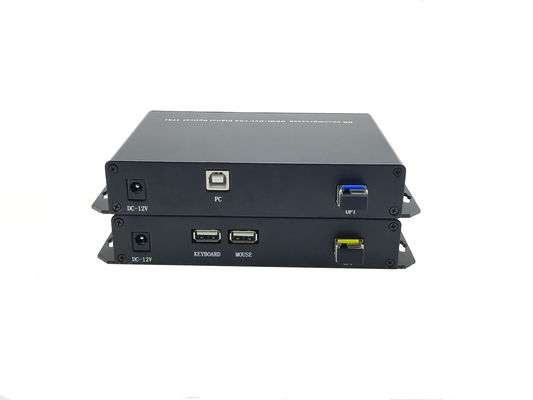

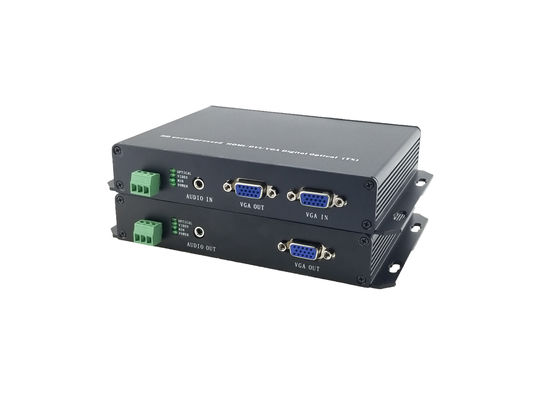

1forward video/1 return audio/rs232/KVM with SFP 1080p/60hz fiber optic converter single mode

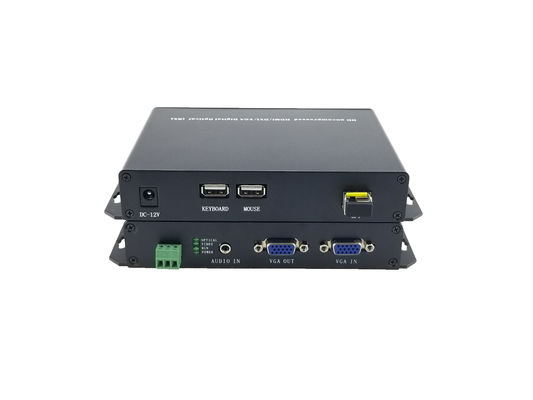

1forward video/1 return audio/rs232/KVM with SFP 1080p/60hz fiber optic converter single mode



Main features:



Full digital, Uncompressed HD optical fiber transmission

Exact match VGA standard protocal

With Independent analog audio

With Local VGA loop through the output

With reverse R232 telecommunation

Automatic identification and configure display mode

Support resolution up to 1080P60 and below

Single mode,multimode optical transmission

ESD protection circuit inside, to ensure the ESD damage.

Easily to installation, plug and play, no need to set up

Part 2 Standard Package

VGA transmitter 1 pcs

VGA receiver 1 pcs

Power Supply Unit 5V/2A 2 pcs

User Guide 1 pcs









Specifications:



Interface
VGA IN VGA signal input
VGA OUT VGA signal output
AUDIO IN Audio signal input
AUDIO OUT Audio signal output
OPT OUT Fiber output
OPT IN Fiber input
UART Serial telecommunication port
DC 5V power



Indicator Light VGA Transmitter VGA Receiver
VIDEO On With video signal
Off Without video signal
LOCK On Fixed video signal
Off Without fixed video signal
RUN On Device works smoothly
Off Device not works smoothly
POWER On Power on
Off Power off








Temperature -5 to +35°C
Humidity 5 to 90 % RH (no condensation)
The signal of Input and output VGA
Video format
1920 x 1200@60
1920 x 1080@60
1600 x 1200@60
1680 x 1050@60
1280 x 1024@60
1280 x 1024@75
1280 x 800@60
1280 x 768@60
1280 x 720@60
1024 x 768@60
1024 x 768@75
800 x 600@60
800 x 600@75



transmission distance

5KM

20KM

40KM

60KM

Input and output audio 3.5MMaudio
Input and output audio format 44.1K,48K,96K,176K,192K
Serial port Baud rate Support 115200 and below
Input voltage DC 5V,inside+ outside-
Power consumption

VGAReceiver 4W

VGATransmitter 4W

Device size L*W*H (mm)120X97.5X25.2
Packing box size
Weight











Application Diagram:



1,Connect VGA input signal to VGA_IN port by VGA cable

2,Connect VGA output signal to VGA_OUT port by VGA cable

3,Connect audio input signal to AUDIO IN

4,Connect audio output signal to AUDIO OUT

5,Connect serial port to UART

5,Connect LCfiber to OPT IN and OPT OUT

6,Power on
