Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data

China Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data supplier
Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data supplier Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data supplier Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data supplier Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data supplier

Large Image :  Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data

Product Details:

Place of Origin: China
Brand Name: Ho-link
Certification: CE FCC ROHS
Model Number: HL-16V1D-T/RF-1080

Payment & Shipping Terms:

Minimum Order Quantity: 1 pair
Packaging Details: neutral packing
Supply Ability: 500 pairs per month
Contact Now
Detailed Product Description
Wavelength: 1310/1550nm Product Name: HDCVI Video Converter
Connector: Simplex FC Transmission Distance: 20km
Warranty: 3 Years Fiber Type: Single Mode Single Fiber
Input/output Impedance: BNC 75Ω (unbalance) Operating Temperature: 0℃ To +70℃
Power: DC 5V2A Color: Black
Distance: 20km Video Interface: BNC

Product description

Ho-Link HD TVI/CVI/AHD/CVBS 4 in 1 Video to Fiber Converter can simultaneously transmit 1 channel HD TVI/CVI/AHD/CVBS video over one single-mode optical fiber. Electronic and optical adjustments are never required. LED indicators are provided for instantly monitoring system status. Devices are available for either standalone or rack-mount installation, which is suitable for different working environment. Ho-link HD TVI/CVI/AHD/CVBS Video to fiber converters adopt the advanced uncompressed HD composite video and high velocity digital optical transmission technologies which convert the composite signals to optical signals to achieve long distance for the HD CCTV installation.

Detailed images

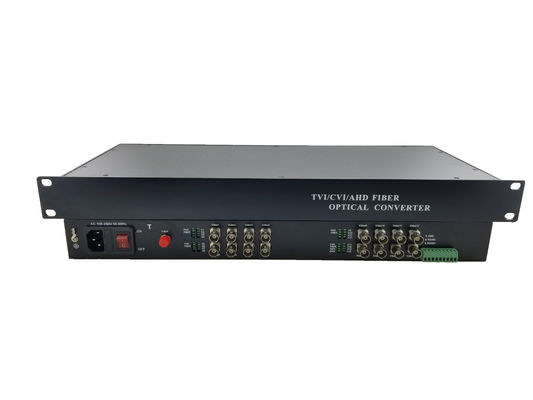

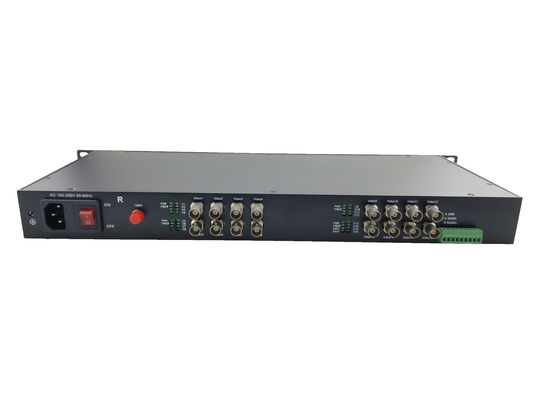

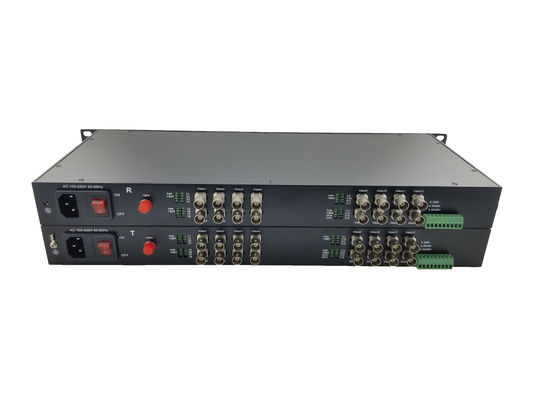

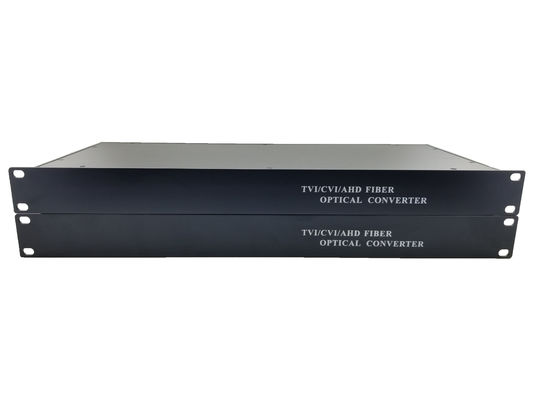

Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data



Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data
Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data
Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data
Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data





Product details

Features:


1. Non-compression coding technology
2. Automatically identify formats of input videos
3. Support transmission of HD TVI/CVI/AHD/CVBS signal and controlling data simultaneously though fiber optic cable
4. DC 5V power supply
5. Support 720p/25,720p/30,720p/50,720p/60,1080p/25,1080p/30 videos etc
6. Through LED indicators to inform its functional mode
7. Industrial wide range of operational temperature
8. Plug and play, simple installation



Technial Specifications:


Feature
Description




Optical
Fiber Type
Single-mode fiber(9/125um)
Fiber Connector
FC
Distance
20KM (Single-mode fiber)
Wavelength
Transmitter:T1310nm, R1550nm.
Receiver:T1550nm,R1310nm.
Fiber Power
-9~ -5dBm
Rx Sensitivity
-24dBm
Video
Video Interface Number
16 channels
Physical Interface
BNC
Tx Input level
>500mVp-p
Rx Output level
1-1.2Vp-p
Bandwidth of Video
50M(720P) 100M(1080P)
Differential Phase
≤ 2
Differential Gain
≤ 2%
Input/Output Impedance
75 Ω
Surge Protection
10/700us:(1-1.5kv)
Sampling Digit
10 Bit
Sampling Frequency
60Mhz
Data
Physical Interface
The industry standard connecting terminal
Interface Signal
RS485/RS422/RS232/Manchester
Baud Rate
0-400Kbps
BER
< 10 -9
Operation Mode
Full duplex / half duplex
Environmental Demand
Environmental Temperature
-30℃~+75℃
Storage Environment
-40℃~+85℃
Relative Humidity
0-95% ( no condensation)
Mean Time Between Failures(MTBF)
≥100 000 hours
EPS
DC5V

Application:



Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data

Related Products:



Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data
Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data
Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data
Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data
Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data
Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data
Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data
Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data
Certifications
Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data
Packing and Shipping
Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data
Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data
Audio/Video Solution 16ch uncompressed TVI/CVI/AHD 1080P fiber video converter with data
FAQ

Q1: How can I get your catalogue and price list?

A:Please let us know your email or contact us from website directly for our catalogue and price list.



Q2: Can I negotiate the prices?

A:Yes,we may consider discounts for multiple container load of mixed goods.



Q3: How much will the shipping charges be?

A:It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.



Q4: Can I visit your factory?

A:Sure,our factory is in Shenzhen,China .I'm waiting for you here



Q5: What if there is quality problem when we get the goods?

A:If there any quality problem when you un-package the goods,you can take pictures for our reference,our QC department will check the problem and give best solutions to you.



Remark:

To meet the needs of our customers and help them to realize their projects, we also can manufacture the products according to customers requirements.



Any questions please feel free to contact us,we will provide quality services for you.
