1080P/60Hz 3G-SDI Fiber Optical Extender with Optic Transmitter and Receiver,Support SD/HD/3G-SDI input&output 20KM

China 1080P/60Hz 3G-SDI Fiber Optical Extender with Optic Transmitter and Receiver,Support SD/HD/3G-SDI input&output 20KM supplier
1080P/60Hz 3G-SDI Fiber Optical Extender with Optic Transmitter and Receiver,Support SD/HD/3G-SDI input&output 20KM supplier 1080P/60Hz 3G-SDI Fiber Optical Extender with Optic Transmitter and Receiver,Support SD/HD/3G-SDI input&output 20KM supplier 1080P/60Hz 3G-SDI Fiber Optical Extender with Optic Transmitter and Receiver,Support SD/HD/3G-SDI input&output 20KM supplier 1080P/60Hz 3G-SDI Fiber Optical Extender with Optic Transmitter and Receiver,Support SD/HD/3G-SDI input&output 20KM supplier

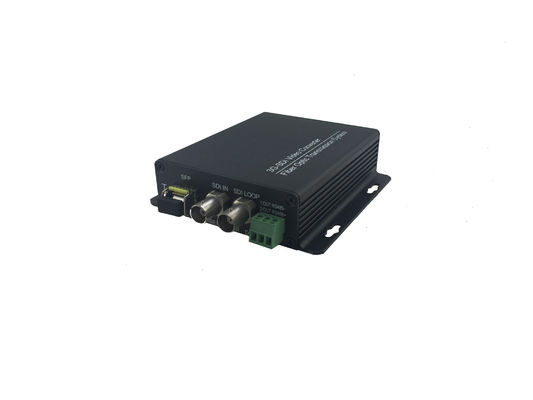

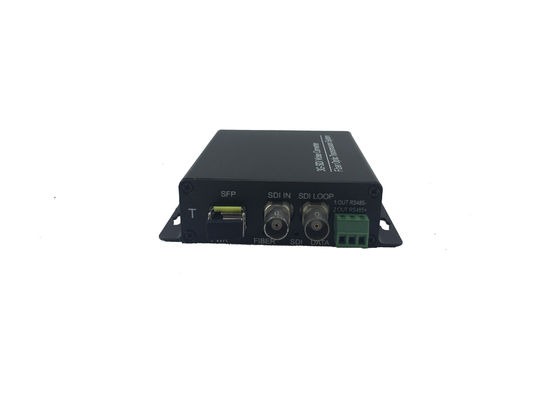

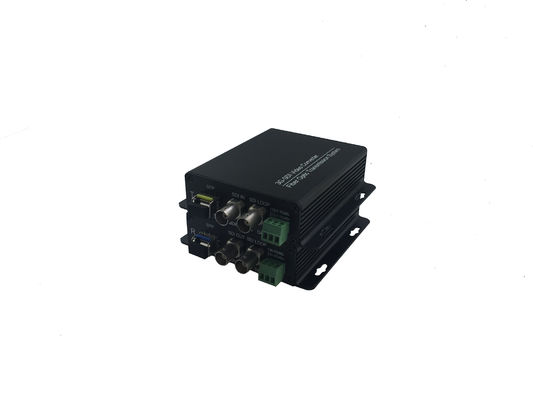

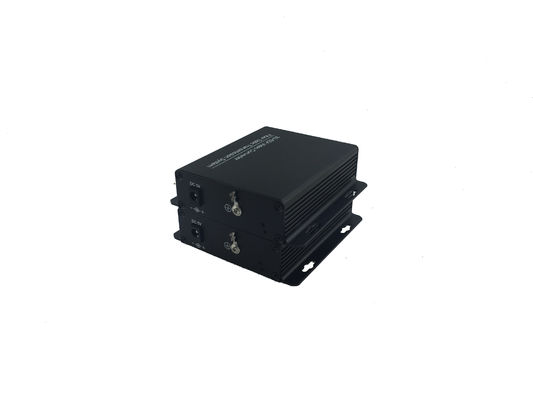

Large Image :  1080P/60Hz 3G-SDI Fiber Optical Extender with Optic Transmitter and Receiver,Support SD/HD/3G-SDI input&output 20KM

Product Details:

Place of Origin: China
Brand Name: Ho-Link/OEM
Certification: CE/ROHS/FCC
Model Number: HL-1V1D-20T/R/3G-SDI

Payment & Shipping Terms:

Minimum Order Quantity: 5 Pair
Price: Negotiable
Packaging Details: Neutral /Standard/Customized packing
Delivery Time: 3 working days after received your payment
Payment Terms: T/T or western Union or Paypal
Supply Ability: 6000pcs per month
Contact Now
Detailed Product Description
Product Name: 3G SDI To Fiber Transceiver Physical Interface: BNC
Impedance: 75Ω Transmission Distance: 0-20km
Interface Type: FC/SC/LC Video Bandwidth: 45MHz
Fiber Distance: 20Km Color: Black
Material: Aluminum Alloy Keywords: SDI To Fiber Converter

3G SDI video audio signal to fiber converter over 1ch transmitter and receiver for camera



Product Description
1080P/60Hz 3G-SDI Fiber Optical Extender with Optic Transmitter and Receiver,Support SD/HD/3G-SDI input&output 20KM



System Design Fiber Optic Video Transmitter & Receiver



SDI series can transmission 1/2/4/8-Channels

SD-SDI/HD-SDI/3G-SDI video over 1 single core fiber.







Single-Mode or Multi-Mode



SD-SDI/HD-SDI/3G-SDI units are designed to support LC /PC Optical connector

We will offer free patch cord + adaptor for your request for SC/PC or ST/PC or FC/PC optical

connector.



The Transmission distance Range according to the Optical Budget.



Manufacturer's default standard is single mode 20Km .









Features



•1/2/4/8 Channels Video of SD-SDI/HD-SDI/3G-SDI can be transmitted via 1 single fiber

The Max rate of work is 3.2Gb/s

Support SMPTE 292M (2.9Gb/s) clock recovery

• Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI)

• Out wavelength range is 1310nm,1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)

• Automatic cable equalization ,used for all rate below 3.2 Gb/s(Belden 1694A)

LED Status Indication to monitor the working conditions

Video transmission system can support many application branches structure

•The fiber port Support SFP transceiver hot-plugged

The SDI video format support:

625/25 PAL

525/29.97 NTSC

525/23.98 NTSC

720p50,720p59.94

1080P 23.98/24/30/50/60

1080i 23/24/30/50/59.94









Typical application

1080P/60Hz 3G-SDI Fiber Optical Extender with Optic Transmitter and Receiver,Support SD/HD/3G-SDI input&output 20KM



1080P/60Hz 3G-SDI Fiber Optical Extender with Optic Transmitter and Receiver,Support SD/HD/3G-SDI input&output 20KM







Remark



•The Optical Power Budget fit Multi-mode(62.5/125m),Single-Mode(9/125 m).

•When using 50/125 m multimode fiber, subtract 3 dB from the optical power budget.

•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.

•Maximum transmission distance is also limited by fiber bandwidth.

•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.

•Please feel free to contact factory for any special requirement and customization







Parameter categories Parameter Parameter Values
Basic Parameter Physical Interface LC, SC, FC for option ,Single Mode Single Fiber
Transmission distance 0-20km
Input / output wavelength The transmitter side: 1310nm transmit 1550nm receive; The receiving side: 1550nm transmit 1310nm receive
Technical Specifaications Video 720p|25/30/50/60 pin,1080p|25/30 pin
Input Level >500mVp-p
Output Level 1Vp-p
Automatic cable equalization 1080p: 75-5 Coax Support 300m 720p: 75-5 Coax Support 500m
Input and output impedance 75Ω
Physical Interface BNC
Video Input 1
Video Output 1
Output loop-through 1
Video Bandwidth 45MHz
Sampling bandwidth 10bit
Control Specifications

Baud Rate 1200-9600bps
BER <10-9
Operating mode Half-duplex
Environmental Operating Humidity 10%-90%
Operating Temperature subzero 40℃-75℃
Storage Temperature subzero 40℃-85℃









Packaging & Shipping



1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed
