1 Pair 8 Channel RS485 Return 1080P TVI AHD HD CVI Fiber Optical Video Converter

China 1 Pair 8 Channel RS485 Return 1080P TVI AHD HD CVI Fiber Optical Video Converter supplier
1 Pair 8 Channel RS485 Return 1080P TVI AHD HD CVI Fiber Optical Video Converter supplier 1 Pair 8 Channel RS485 Return 1080P TVI AHD HD CVI Fiber Optical Video Converter supplier 1 Pair 8 Channel RS485 Return 1080P TVI AHD HD CVI Fiber Optical Video Converter supplier 1 Pair 8 Channel RS485 Return 1080P TVI AHD HD CVI Fiber Optical Video Converter supplier 1 Pair 8 Channel RS485 Return 1080P TVI AHD HD CVI Fiber Optical Video Converter supplier 1 Pair 8 Channel RS485 Return 1080P TVI AHD HD CVI Fiber Optical Video Converter supplier

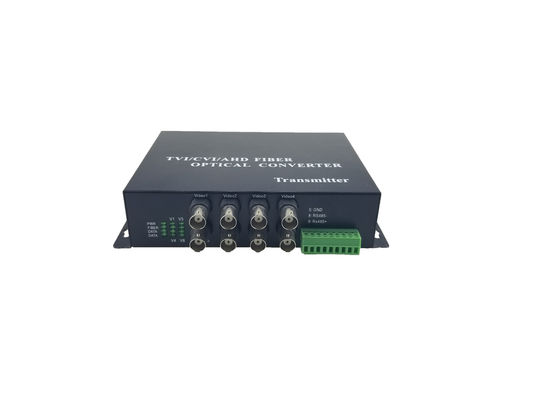

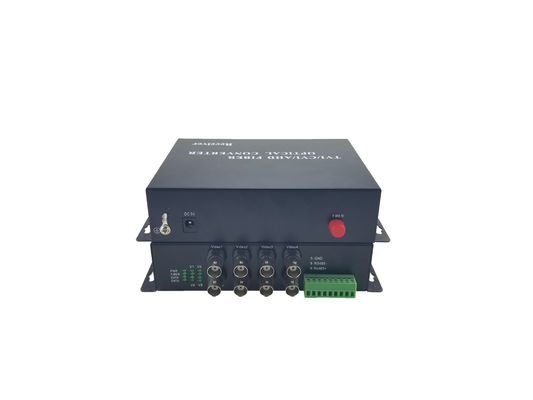

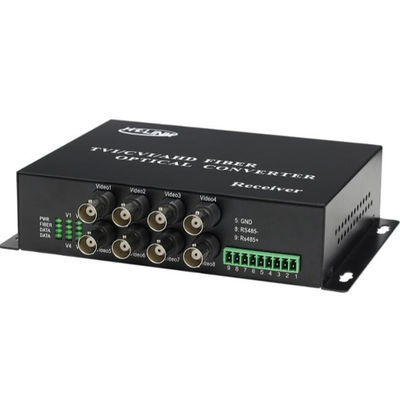

Large Image :  1 Pair 8 Channel RS485 Return 1080P TVI AHD HD CVI Fiber Optical Video Converter

Product Details:

Place of Origin: China
Brand Name: Ho-Link
Certification: CE/ROHS/FCC/SGS
Model Number: H-TVI-T/RF

Payment & Shipping Terms:

Minimum Order Quantity: 10 Pairs
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 1-5 working days after received your payment
Payment Terms: T/T, Western Union,MoneyGram
Supply Ability: 3,000pcs per month
Contact Now
Detailed Product Description
Fiber Type: Single Mode Fiber Fiber Connector: FC Or ST Or SC
Input Level: >500mVp-p Self-adaption Cable Equilibrium: 1080p:75-5 Coaxial Cable,300m 720p:75-5 Coaxial Cable,500m
Input/Output Impedance: 75Ω Physical Interface: BNC Connector
EPS: DC5V Operation Mode: Half-Duplex
Indicators: LOS, PWR, DATA, VIDEO Distance: 0-100Km

1080P/720P 8 Channels HDTVI Video Over Fiber Converter





Product Description



Introduction



HD CVI /AHD /TVI video converter is designed for long-distance optical fiber transmission.

It adopt the advanced uncompressed HD composite video and high velocity digital optical

transmission technologies which convert the high definition signals to optical signals.1 Pair 8 Channel RS485 Return 1080P TVI AHD HD CVI Fiber Optical Video Converter



HD CVI /AHD /TVI video converter can simultaneously transmit 1/2/4/8/16 CH composite video.

Feature is real-time, synchronous, lossless, high reliability, coaxial point to point transmission.

The play-and-plug design makes the installation more convenient and easier for our customer.



1 Pair 8 Channel RS485 Return 1080P TVI AHD HD CVI Fiber Optical Video Converter



Description:



Ø Non-compression coding technology

Ø Automatically identify formats of input videos

Ø Support transmission of 8 channels TVI signal and controlling data simultaneously though coaxial cable

Ø DC 5V power supply

Ø Support 720p/25,720p/30,720p/50,720p/60, 1080p/25, 1080p/30 videos etc

Ø Through LED indicators to inform its functional mode

Ø Industrial wide range of operational temperature

Ø Plug and play, simple installation







Specifications:



Feature Description
Optical Fiber Type Single mode fiber
Fiber Connector FC/SC/ST
Distance 0km~80km
Wavelength Transmitter
T1310nm, R1550nm.
Receiver
T1550nm,R1310nm.
HDTVI(Transmitting) Input level >500mVp-p
self-adaptionly cable equilibrium 1080p:75-5
coaxial cable,300m
720p:75-5 coaxial cable,500m
Input/Output Impedance 75 Ω
Physical Interface BNC
HDTVI(Receiving) Output level 1Vp-p
Input/Output Impedance 75Ω
Physical Interface BNC
Data Transmission Media Coaxial cable
Baud Rate 1200~9600bit/s
Bit Error Rate ≤<10 -7
Operation Mode Half-Duplex;Full-Duplex;RS-232
Indicators LOS,PWR,VIDEO
Mean time between failures(MTBF)



>100 000 hours

General EPS DC5V
Power Consumption ≤ 5W











Applications:

  • Remote OB Van/Truck Video Feeds
  • Broadcast Studio Camera Feeds
  • Long-haul Signal Transport
  • TV station/video conference
  • Lecture Hall Projector Connectivity
  • Medical/Surgical Room Broadcast
  • Building to video conference calling
  • Small corporate campus video links





Competitive Advantage:



Ho-Link HDTVI Converters adopt the advanced uncompressed HD composite video and

high velocity digital optical transmission technologies which convert the HDTVI composite signals to optical signals to achieve long distance(as far as 80Km) transmission through fibers.



HDTVI TO Fiber Converter System connection diagram





1 Pair 8 Channel RS485 Return 1080P TVI AHD HD CVI Fiber Optical Video Converter











Packaging & Shipping



1 All of our package are international standard package

2 We will deliver our products as soon as the order confirmed

1 Pair 8 Channel RS485 Return 1080P TVI AHD HD CVI Fiber Optical Video Converter





Payment



1 Pair 8 Channel RS485 Return 1080P TVI AHD HD CVI Fiber Optical Video Converter



Our Services



Welcome to inquire!



1 Pair 8 Channel RS485 Return 1080P TVI AHD HD CVI Fiber Optical Video Converter


Ho-Link Technology Co.,Ltd



TVI/AHD/HD CVI fiber optical converter 1 to 16 channels HD coaxial Fiber video converter









Company Information

Company Profile



Ho-link Technology Co., Limited is a leading manufacturer of fiber optic transmission products in China. We manufacture full range fiber optic transmission products , from Media converter, Video converter, to Optical transceiver and POE switch. Besides, we provide OEM/ODM service for many famous companies in Telecom industry all over the world.

Every month, we can turn out 10,0000 units of above products. Before production, our raw materials are checked again to make sure they are compliant with RoHS Directives. And all our output is CE and FCC-marked, finding good markets in many countries and regions including United, Kingdom,
Spain,Italy,Poland,Turkey,US,Canada,Brazil,Australia,Indonesia,Singapore,Malaysia,Vietnam and India.

Welcome to source high quality products at competitive prices from us.
